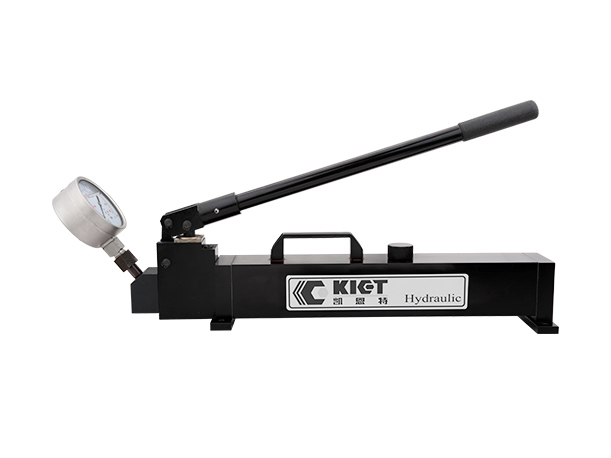

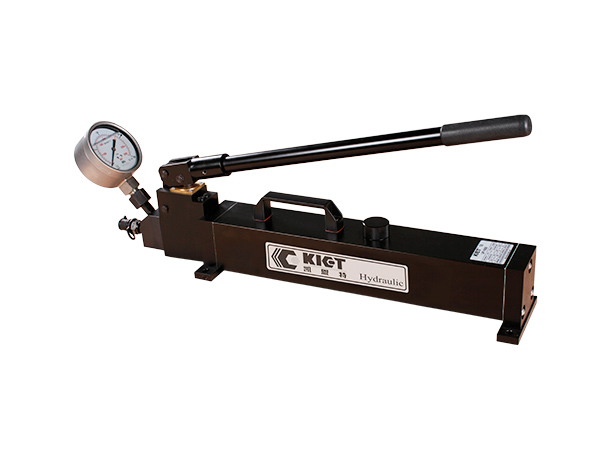

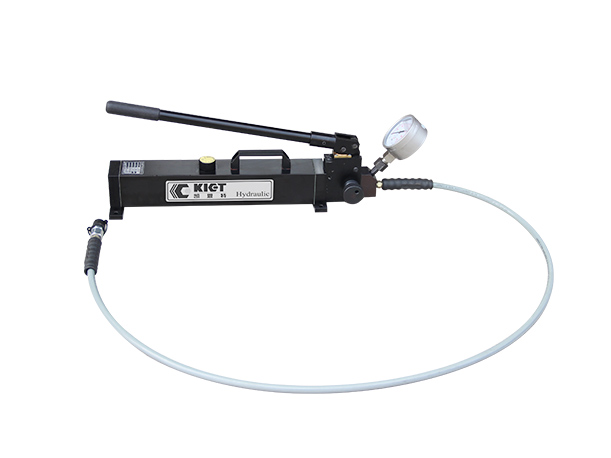

KET-P-1000 Ultra-High Pressure Hydraulic Hand Pump

Feat: Aerospace aluminum-titanium alloy oil tank, light weight, high strength, and easy to carry on-site application.

Use: It is equipped with ultra-high pressure hydraulic jacks, hydraulic bolt stretchers, hydraulic nuts, and ultra-high pressure nut splitters.

Details

Features:

Maximum working pressure up to 300Mpa(43500Psi);
Aerospace grade aluminum titanium alloy material makes it light weight, high strength and portable.
Two stage design with high flow and high pressure. Pressure can be set arbitrarily. Internal pressure relief valve for overload protection.
Built-in energy storage mechanism ensures stable pressure.
Special oil tank cover design makes the oil tank has the good sealing property or air permeability, which can make air pressure keep balance inside and outside of the oil tank.
Can be used in a vertical state when the pump head faces down.
Double plungers design, high flow in low pressure, small flow in high pressure. Low handle force even at maximum working pressure.
