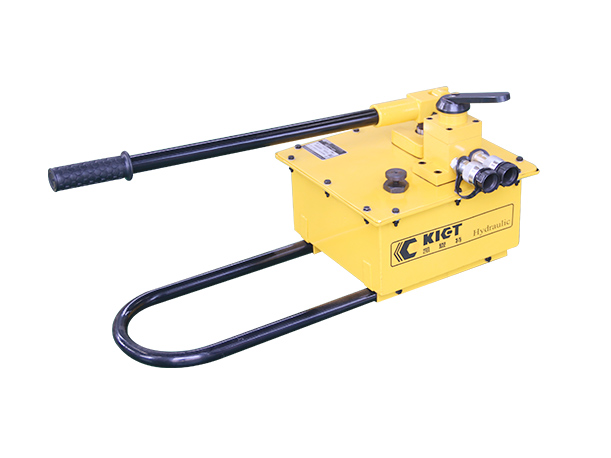

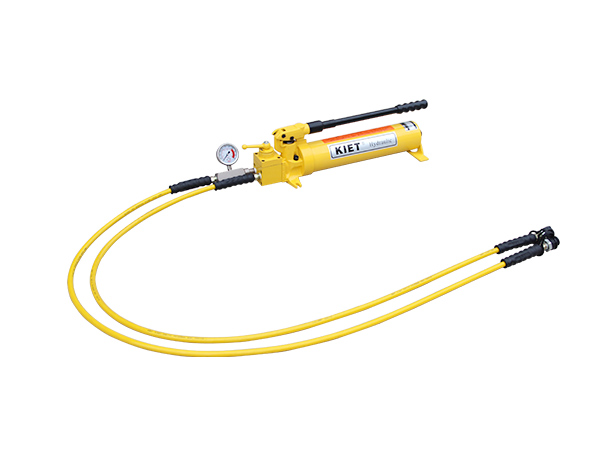

Feat: The fuel tank has a large capacity, and a wider range of hydraulic jacks and tools that can be matched.
Use: Used for large-tonnage hydraulic jacks.
| Model | Working Pressure (bar) |
Oil Displacement Per Stroke(ml) | Outlet Size | Oil Tank Capacity (L) | Cylinder Type | ||
| 1st stage | 2nd stage | 1st stage | 2nd stage | ||||
| KET-P-80 | 34 | 700 | 16.22 | 2.46 | NPT3/8" | 2.2 | Single acting |
| KET-P-84 | 34 | 700 | 16.22 | 2.46 | NPT3/8" | 2.2 | Double acting |
| KET-P-462 | 14 | 700 | 126 | 4.7 | NPT3/8" | 7.4 | Single acting |
| KET-P-464 | 14 | 700 | 126 | 4.7 | NPT3/8" | 7.4 | Double acting |
