Lightweight Hydraulic Foot Pump
Lightweight Hydraulic Foot Pump
Lightweight Hydraulic Foot Pump

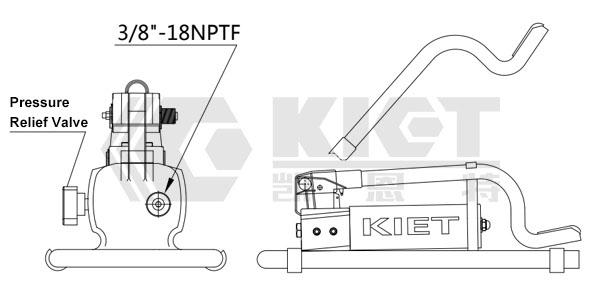

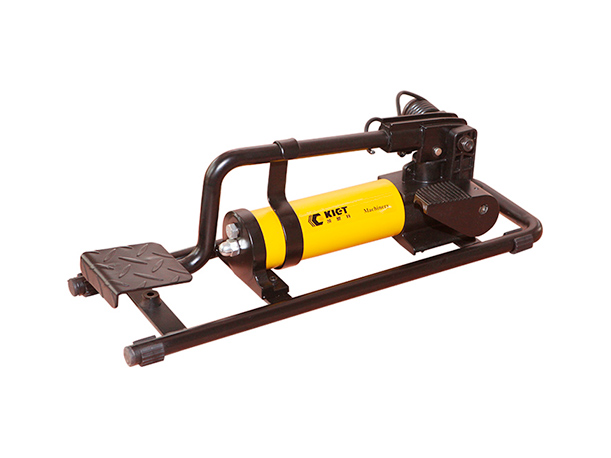

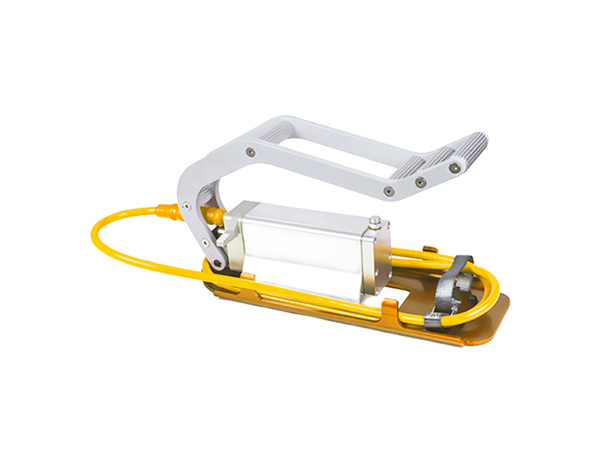

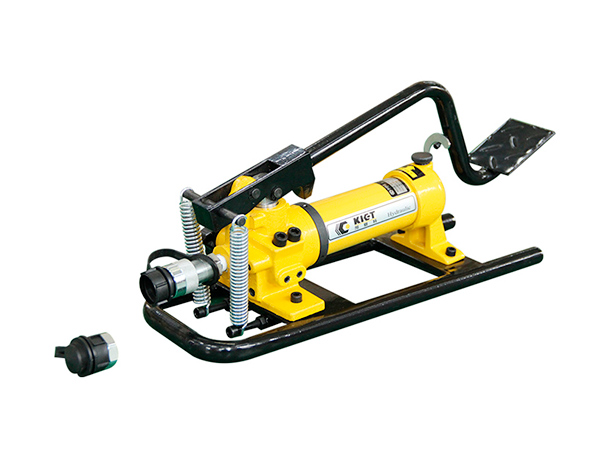

KET-P392FP Lightweight Hydraulic Foot Pump

Feat: Control of backhaul when loaded and fast backhaul when loaded.

Use: Used with hydraulic jacks and other hydraulic tools.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
Features:
  • Rugged, durable and compact
  • Steel frame with steel drawer for maximum stability
  • Foot lock and lightweight construction for easy portability
  • Two-speed operation reduces pedal stroke
  • Large foot pad release valve for controlled load drop
  • Integrated pressure relief valve for overload protection
Specs
Technical Parameters
Model Working Pressure
(bar) 		Oil Displacement per Stroke
(ml/once) 		Remark Dimensions
(mm) 		Weight
(kg)
1st stage 2nd stage 1st stage 2nd stage
KET-P-392FP 15 700 11.26 2.47 Steel 600×193×433 7
KET-P-400FP 26 700 12 2 Steel 720×180×200 8
Technical Parameters
Model Working Pressure(MPa) Flow（L） Oil Tank Capacity(L) Weight(kg)
1st stage 2nd stage
KET-HP-700 70 12.26 cc per use 2.26 cc per use 1 8
Cases
[Hydraulic pump station]Used with various hydraulic tools
[Hydraulic pump station]Used with various hydraulic tools
Video
Related
KET-P392/142 Lightweight Hydraulic Hand Pump
Working Pressure：70MPa
Oil Tank Capacity：250 ~ 901ml
Output Port：NPT1/4"、NPT3/8"
KET-P80/462 Steel Hydraulic Hand Pump
Working Pressure：70MPa
Oil Tank Capacity：2.2 ~ 7.4L
Output Port：NPT3/8"
KET-P-1000 Ultra-High Pressure Hydraulic Hand Pump
Working Pressure：300MPa
Oil Tank Capacity：2.2L
Output Port：G1/4"
KET-SSB/SDB/DSB Electric Hydraulic Pump
Working Pressure：70MPa
Oil Tank Capacity：10 ~ 100L
Motor Power：0.55 ~ 7.5KW
