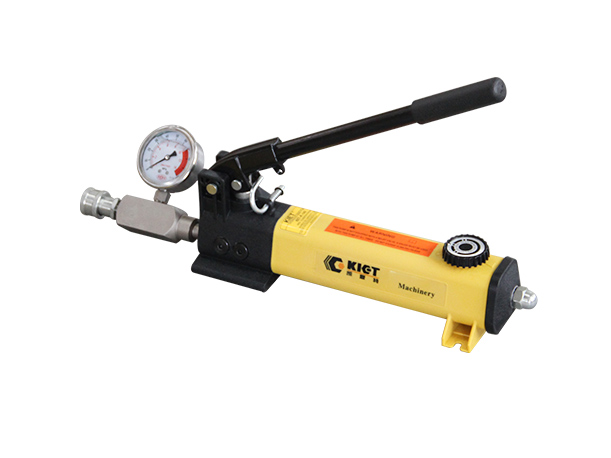

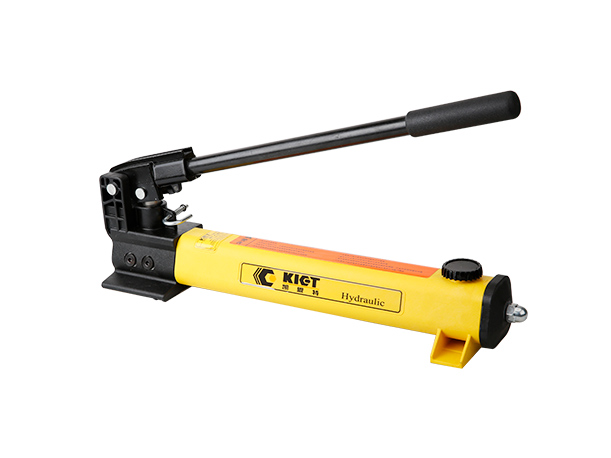

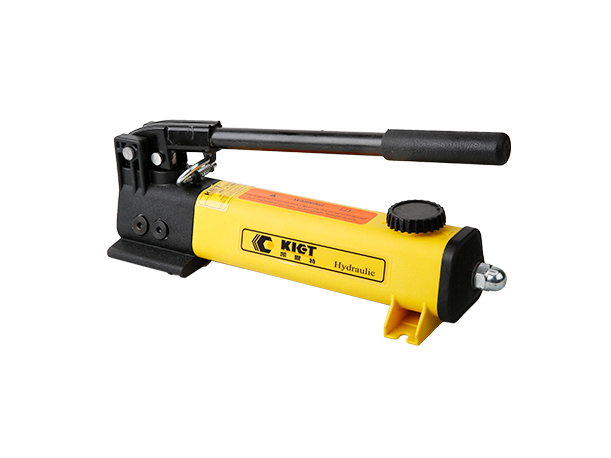

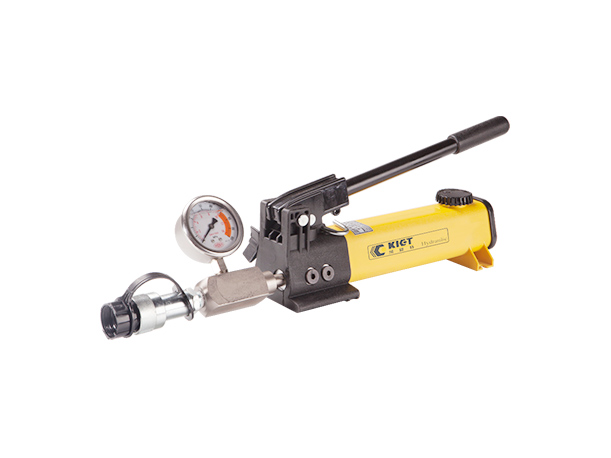

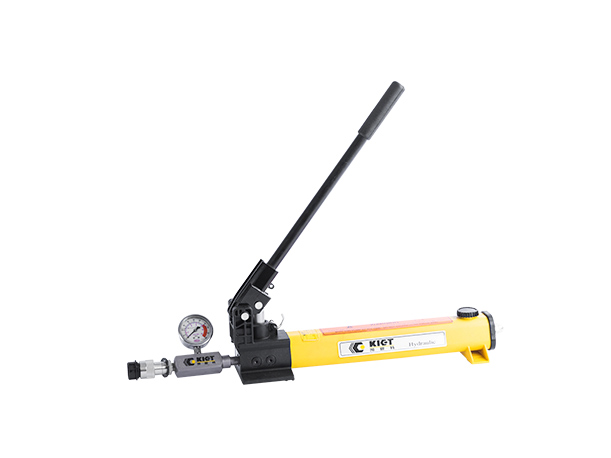

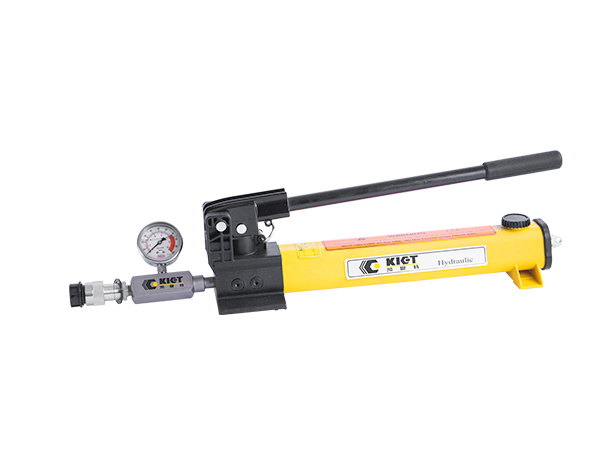

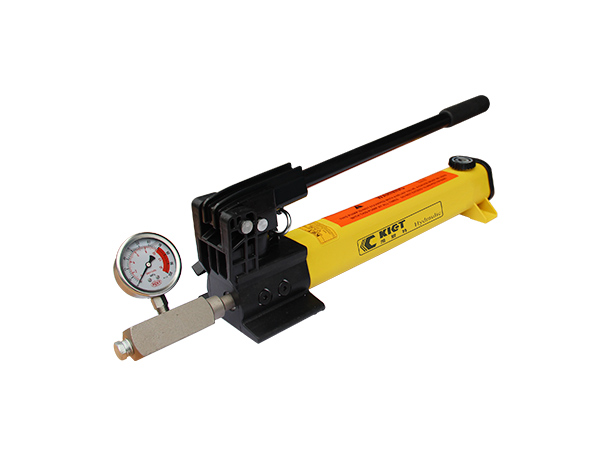

KET-P392/142 Lightweight Hydraulic Hand Pump

Feat: High voltage, manual, ultra-small, easy to carry, simple to operate, wide application range.

Use: Used with hydraulic jacks and other hydraulic tools.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details

Light weight hand pump is a kind of small high pressure hydraulic pump that can transfer mechanical power to hydraulic power, matched with the hydraulic cylinder for lifting the heavy equipment, and also can be matched with the other hydraulic tools for bending, cutting, assembling, dismantling etc.

Product Features:
  • High pressure, manual type, light weight, portable, easy to operate.
  • Two speed operation, automatic switching, high performance, large oil tank.
  • Built-in safety valve to avoid damage caused by high pressure.
  • Optional directional valve to make it more convenient to operate the single acting cylinders.
Specs
Model Working Pressure (MPa) Oil Displacement per Stroke  (ml) Outlet Size Oil Tank Capacity     (ml) Dimensions (mm) Weight(kg)
1st stage 2nd stage 1st stage 2nd stage
KET-P-142 1.3 70 32 1.6 NPT3/8” 350 310X137X127 2.2
KET-P-392 1.3 70 32 1.6 NPT3/8” 901 533X157X127 4.0
