Gear Puller
Vehicle-mounted Hydraulic Cam Dismounting Puller
Vehicle-mounted Hydraulic Cam Dismounting Puller

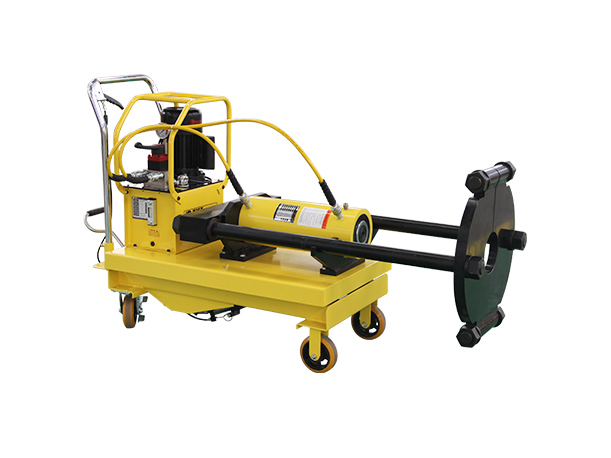

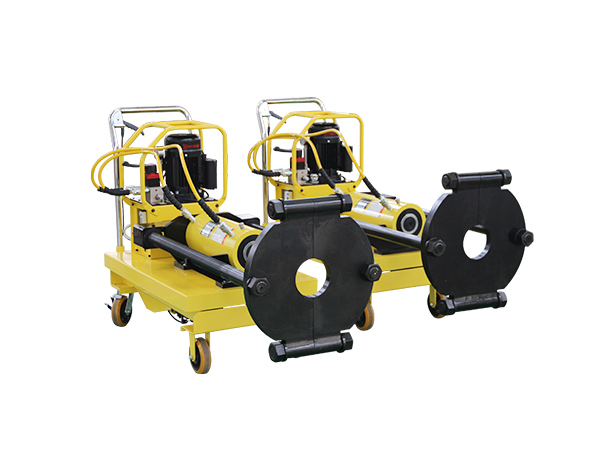

KET-DTC Vehicle-mounted Hydraulic Cam Dismounting Puller

Feat: High-strength alloy steel forged, with high disassembly strength and easy to move.

Use: Suitable for disassembling of workpieces such as coal mills, steam turbine cams, induced fans, motor couplings, bearings, gears, etc. in thermal power plants.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details

Vehicle-mounted hydraulic cam dismounting puller is widely used to dismantle the cam in the coal mill and steam turbine, the coupling , gear, bearing in the induced draft fan and motors. Equipped with special double speed electric hydraulic pump, it is very safe and reliable.

Features:
  • High strength alloy steel jaws with high pulling force.
  • Vehicle-mounted type, move conveniently.
  • Power can be customized.
Specs
Model Working Pressure（MPa） Cylinder Capacity（T） Working Stroke （mm） Spread Range（mm） Motor Power（KW） Voltage （V）
KET-DTC-50T 700 50 250 100-380 0.75 380
KET-DTC-100T 700 100 350 170-420 0.75 380
KET-DTC-150T 700 150 400 210-450 0.75 380
KET-DTC-200T 700 200 500 450-650 2.2 380
Cases
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
