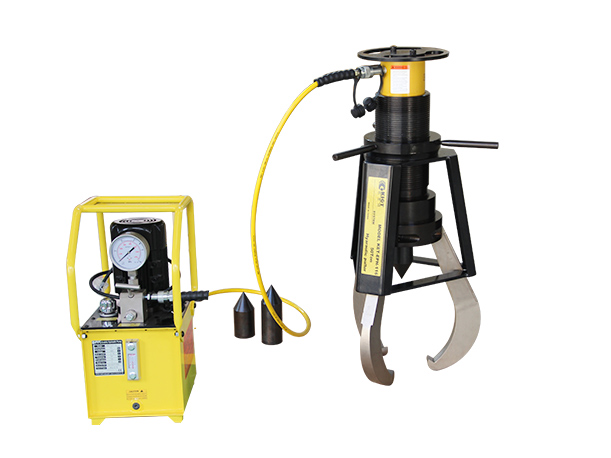

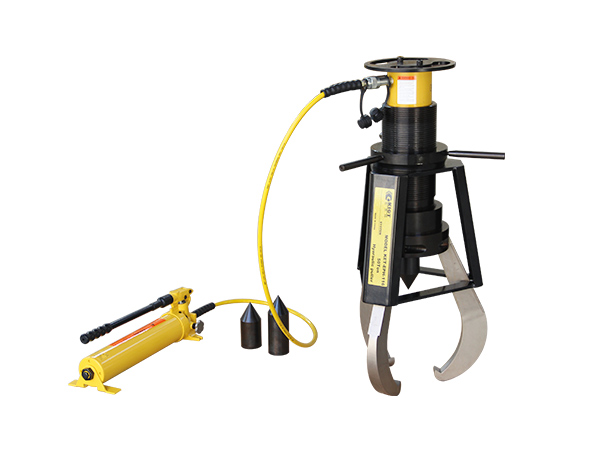

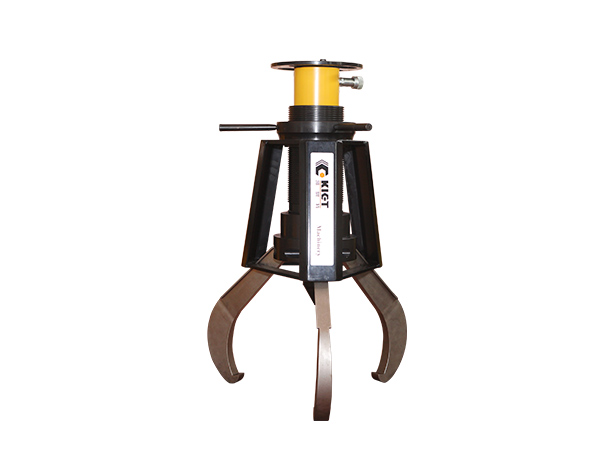

Feat: Safety cage design, automatic centering to prevent biased loading.
Use: Suitable for disassembling workpieces such as bearings, gears, couplings, etc.
| Model | Number of Jaws | Capacity(T) | Spread(min.-max.)(mm) | Max.reach(mm) | Cylinder Stroke（mm） | Oil capacity（cm3） | Weight （kg） |
| KET-EPH-108 | 3 | 10 | 19-304 | 203 | 156 | 226 | 11 |
| KET-EPH-110 | 3 | 15 | 25-381 | 245 | 254 | 516 | 23 |
| KET-EPH-113 | 3 | 25 | 63-457 | 304 | 362 | 1202 | 48 |
| KET-EPH-116 | 3 | 50 | 76-635 | 355 | 337 | 2399 | 91 |
| KET-EPH-208 | 2 | 10 | 19-304 | 203 | 156 | 226 | 10 |
| KET-EPH-210 | 2 | 15 | 25-381 | 245 | 254 | 516 | 22 |
| KET-EPH-213 | 2 | 25 | 63-457 | 304 | 362 | 1202 | 44 |
| KET-EPH-216 | 2 | 50 | 76-635 | 355 | 337 | 2399 | 87 |
