Gear Puller
Mechanical Skid-resistant Gear Puller
Mechanical Skid-resistant Gear Puller
Mechanical Skid-resistant Gear Puller

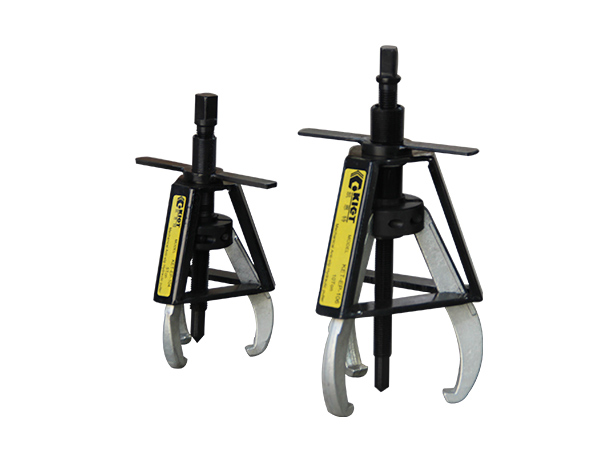

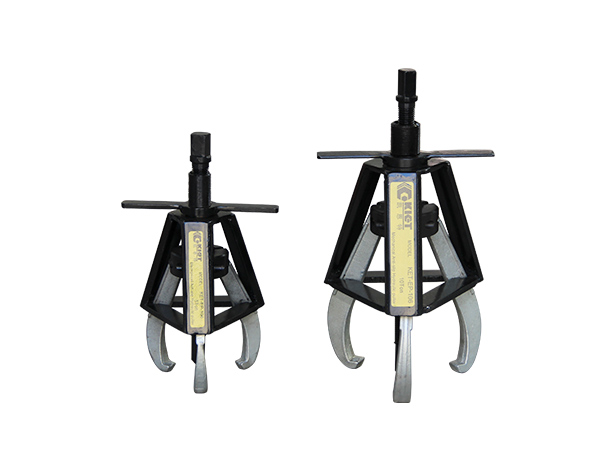

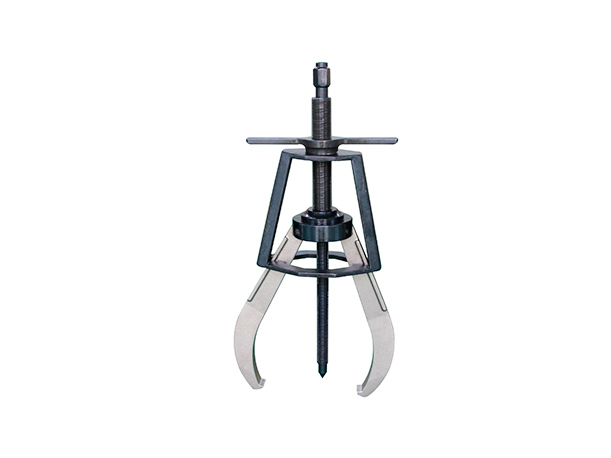

KET-EP Mechanical Skid-resistant Gear Puller

Feat: Safety cage design, automatic centering to prevent biased loading.

Use: Suitable for disassembling workpieces such as bearings, gears, couplings, etc.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
  • Unique ”Safety Cage” system, can firmly fixed the work-piece with the good skid-resistance and safety.
  • Self – centering, anti – eccentric load, ensures that the screw rod is always in the center of force and extends the service life.
  • Through the T type handle and the safety cage to control the wheel quickly, it’s more convenient to operate.
  • Slim tapered jaws make it easier to work in narrow space.
  • NPT 3/8” quick coupling, can work with kinds of 700bar/10000psi power pack together.
  • Slim tapered jaws make it easier to work in narrow space.
Specs
Model Number of Jaws Capacity (T) Spread(min.-max.) (mm) Max.Reach (mm) Screw Rod Diameter (mm) Weight (kg)
KET-EP-104 3 5 12-127 101 14 1.8
KET-EP-106 3 10 12-178 152 16 3.6
KET-EP-108 3 17 19-304 203 20 6.4
KET-EP-110 3 20 25-381 245 20 7.3
KET-EP-113 3 30 63-457 304 29 20
KET-EP-116 3 40 76-635 355 31 30.8
KET-EP-204 2 2 12-127 101 14 1.4
KET-EP-206 2 6 12-178 152 16 3.2
KET-EP-208 2 12 19-304 203 20 5.4
KET-EP-210 2 14 25-381 245 20 5.9
KET-EP-213 2 25 63-457 304 29 17.2
KET-EP-216 2 35 76-635 355 31 25.8
