Gear Puller
Standard Hydraulic Puller Sets
Standard Hydraulic Puller Sets
Standard Hydraulic Puller Sets
Standard Hydraulic Puller Sets

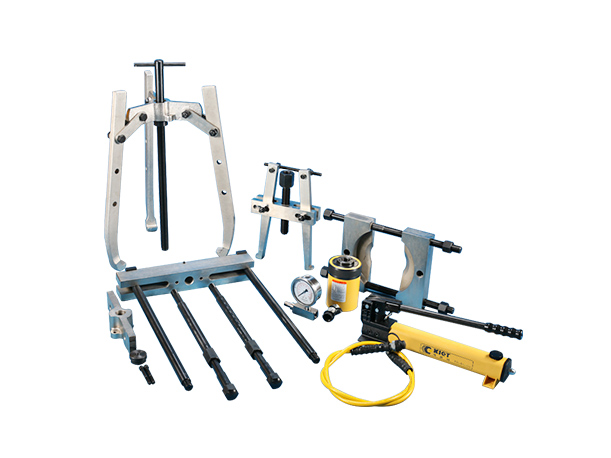

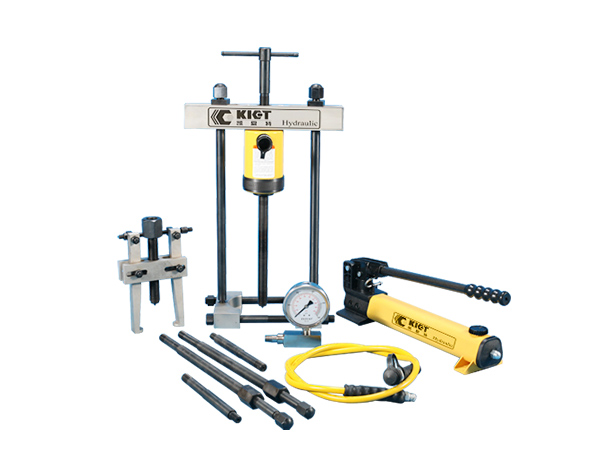

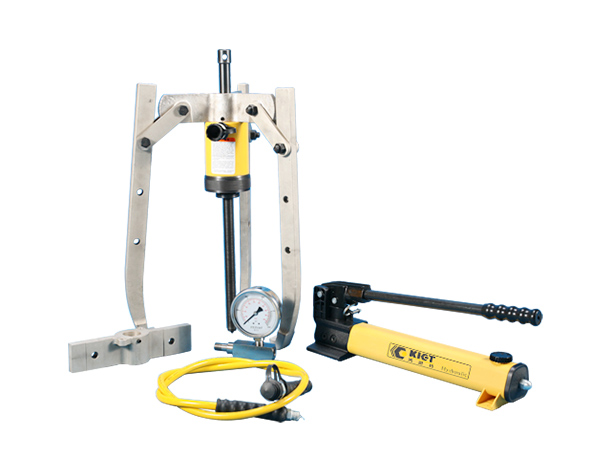

KET-BHP Standard Hydraulic Puller Sets

Feat: Complete set of hydraulic kits to solve different pulling conditions.

Use: Complete set of hydraulic kits to solve different pulling conditions.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
  • Hydraulic puller sets are widely used in dismounting of bearings, gears, couplings, pulley, fringe wheels in metallurgy, electric power, petrochemical, paper mill, cement plant and large equipment maintenance field.
  • Supplied with a full hydraulic set including pump, hose, cylinder, gauge and gauge adaptor.
  • Standard hydraulic puller sets include grip puller sets, cross bearing puller sets, bearing cup puller sets and accessories.
  • High quality, forged steel components provide superior reliability and service.
  • Sets include speed crank and adjusting screw for fast contact to work before hydraulics are applied.
Specs
Specs& Dims
Model Capacit(T) Included Hydraulics Included Pullers Weight(kg)
Hand Pump Cylinder Saddle Grip Puller Crossing Bearing Puller Bearing Cup Puller Bearing Puller
KET-BHP-1752 8 P-142 RCH-121 - BHP-1762 BHP-1772 BHP-180 BHP-181 37
KET-BHP-2751G 20 P-392 RCH-202 HP-2015 BHP-252 BHP-252 BHP-280 BHP-281 90
KET-BHP-3751G 30 P-392 RCH-302 HP-3015 BHP-352 BHP-352 BHP-380 BHP-381 172
KET-BHP-5751G 50 P-80 RCH-603 HP-5016 BHP-552 BHP-552 BHP-580 BHP-581 298
Model Capacity(T) Included Hydraulics Included Pullers
Hand Pump Cylinder Saddle Model Max. Spread (mm) Max. Reach (mm) Jaw (mm) Adjusting Screw (mm)
2 jaws 3 jaws 2 jaws 3 jaws Thickness Width Thread Length
KET-BHP-152 8 P-142 RCH-121 - BHP-1762 249 249 252 252 15 23 3/4″-16UNF 400
KET-BHP-251G 20 P-392 RCH-202 HP-2015 BHP-252 400 499 300 300 20 27 1″-8UNC 675
KET-BHP-351G 30 P-392 RCH-302 HP-3015 BHP-352 593 800 387 387 24 38 1 /4″-7UNC 795

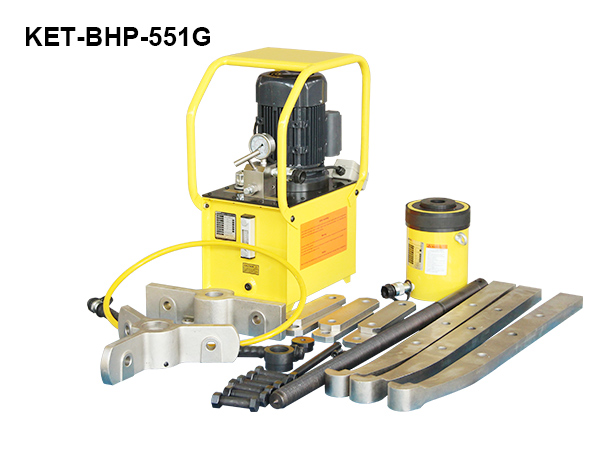

KET-BHP-551G 50 P-80 RCH-603 HP-5016 BHP-552 899 1100 700 700 30 39 5 1 /8″-5.5UNC 975
Model Capacity(T) Included Hydraulics Included Pullers
Hand Pump Cylinder Saddle Model Spread (mm) Max. Reach (mm) Adjusting Screw (mm)
Min. Max. Thread Length
KET-BHP-162 80 P-142 RCH-121 - BHP-1772 266 106 462 3/4″-16UNF 400
KET-BHP-261G 20 P-392 RCH-202 HP-2015 BHP-262 351 139 571 1″-8UNC 675
KET-BHP-361G 30 P-392 RCH-302 HP-3015 BHP-362 454 179 711 1 /4″-7UNC 795
KET-BHP-561G 50 P-80 RCH-603 HP-5016 BHP-562 570 220 863 5 1 /8″-5.5UNC 975
Model Cross Bearing Puller Weight（kg）
Capacity(T) Leg (mm) Upper Leg Ends Thread Lower Leg Ends Thread Bearing Cup Puller Bearing Puller
Length Length Length Length
KET-BHP-162 50 105 354 - - 3/4″-16×25 5/8″-18×25 BHP-180 BHP-181 26
KET-BHP-316G 239 239 419 571 114 1/4″-16×25 5/8″-18×25 BHP-280 BHP-282 62
KET-BHP-361G 50 203 457 711 - 1-14×35 1-14×27 BHP-380 BHP-382 121
KET-BHP-561G 50 609 863 - - 1 /4″-12×38 1 /4″-12×38 BHP-580 BHP-582 185
Cases

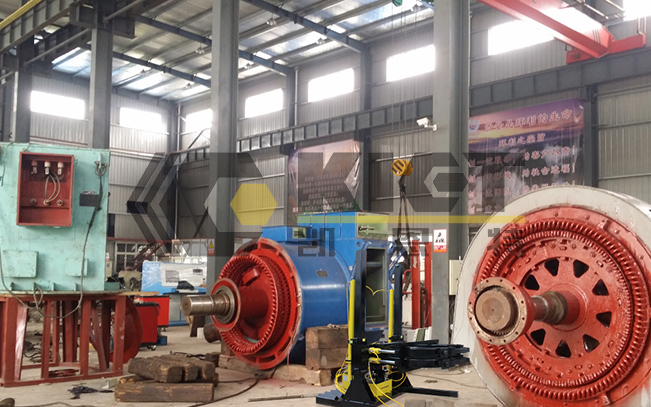

Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
