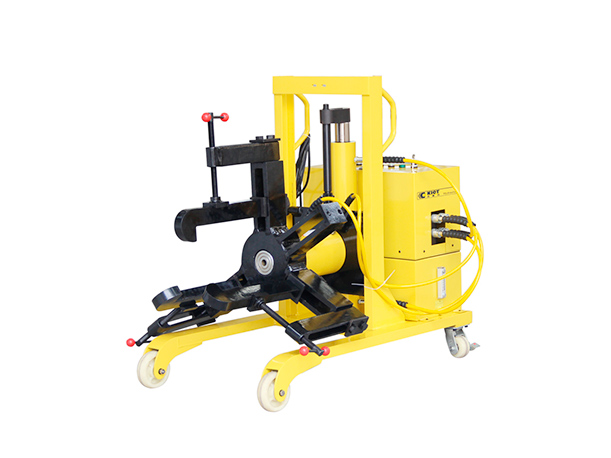

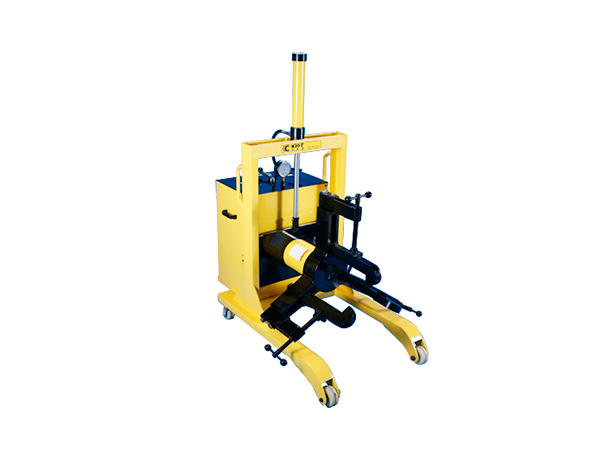

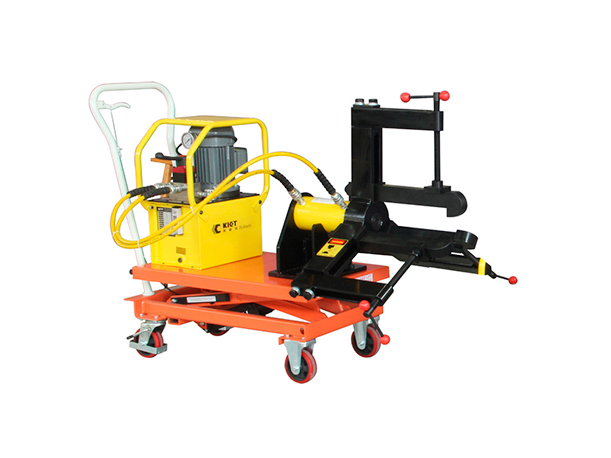

Feat: Automatic lifting system, which can easily and accurately locate the wheel puller up and down.
Use: Suitable for disassembling large bearings, gears, couplings and other large workpieces.
| Model | Working pressure（MPa） | Cylinder Capacity（T） | Cylinder Stroke（mm） | Spread Range（mm） | Reach（mm） | Centering Range（mm） | Motor Power（KW） | Voltage（V） |
KET-DBL-50T |
700 | 50 | 160 | 150-500 | 300 | 500-900 | 0.75 | 380 |
KET-DBL-100T |
700 | 100 | 160 | 240-600 | 300 | 500-900 | 0.75 | 380 |
KET-DBL-200T |
700 | 200 | 160 | 310-700 | 300 | 500-900 | 2.2 | 380 |
KET-DBL-300T |
700 | 300 | 200 | 410-800 | 310 | 530-950 | 2.2 | 380 |
KET-DBL-400T |
700 | 400 | 200 | 450-920 | 480 | 540-950 | 2.2 | 380 |

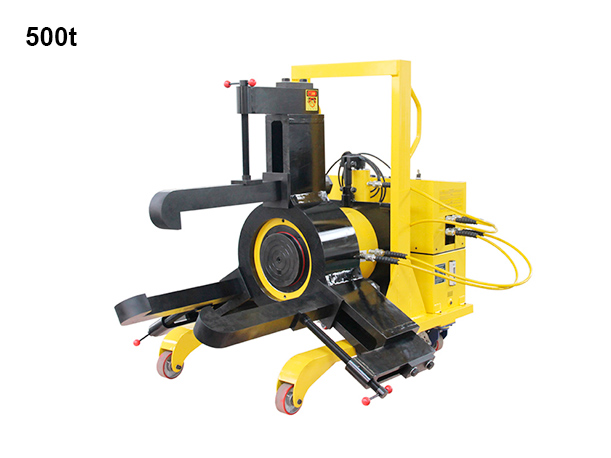

KET-DBL-500T |
700 | 500 | 200 | 560-950 | 580 | 570-950 | 2.2 | 380 |
