Gear Puller
Integrated hydraulic puller
Integrated hydraulic puller
Integrated hydraulic puller

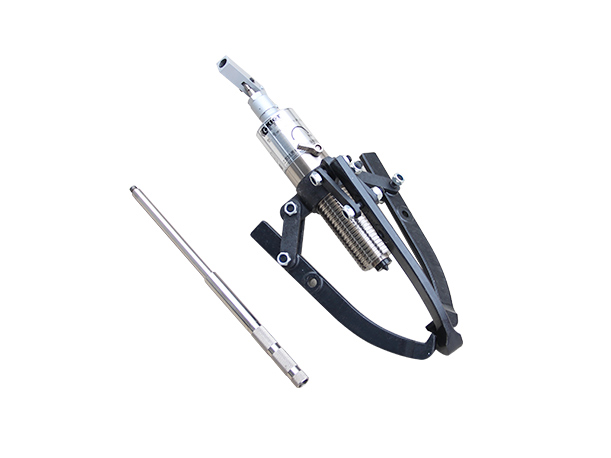

KET-PL Integrated hydraulic puller

Feat: Integrated oil cylinder, small in size and light in weight, easy to use.

Use: Suitable for disassembling workpieces such as bearings, gears, couplings, etc.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
  • Integrated cylinder, small size, light weight, easy to use, strong versatility;
  • The unique arc-shaped jaw can automatically generate clamping force when the plunger of the cylinder is stressed, and the clamping force is automatically aligned and the positioning is simple;
  • The jaws are forged and heat-treated from high-strength steel, which is strong and durable;
  • Rated output of oil cylinder: 8 tons, it can still be used normally when overload is 50%;

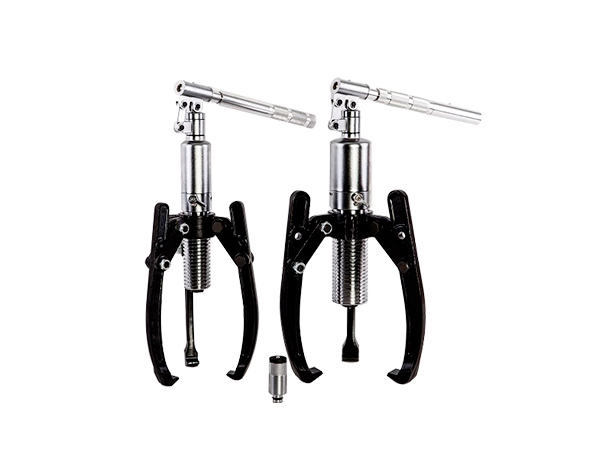

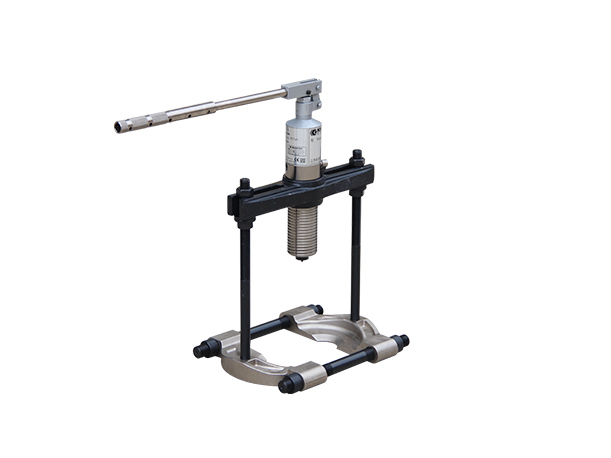

  • It can be composed of 3 claws, 2 claws and ejector rod type push-pull dual-purpose and other pullers, suitable for different occasions;
  • All kits come with a steel storage box.
Specs
Specification Tonnage(T) Depth（mm） Spread（mm） Mechanical Stroke（mm）E Hydraulic Stroke（mm）F Claws
A B C D G H
KET-PL60 6 185 70 75 225 84 60 11 6
KET-PL80 8 229 57 100 350 122 85 11 10
KET-PL150 15 269 103 90 375 118 85 14 10
KET-PL200 20 360 190 210 520 161 111 20 27
KET-PL300 30 360 190 225 550 155 111 20 27
Cases
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
