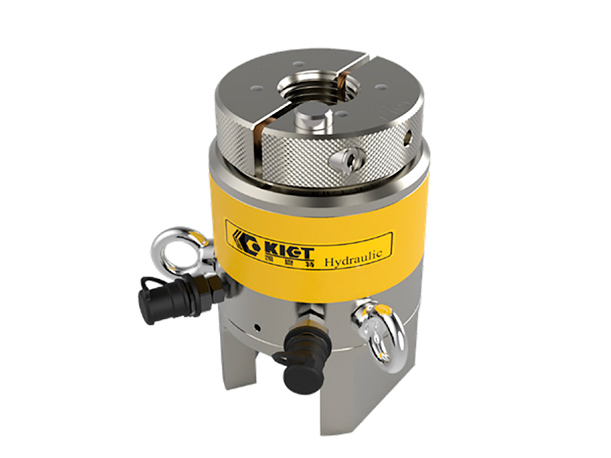

Subsea Bolt Tensioner_Hydraulic bolt tensioners_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Details

Features:

Piston travel – 1.18 inches (-0.79 inches except WST1)
Maximum working pressure 1500 bar
“D” contains the range within which the bolt is allowed to move after tightening up to a stroke of 30 mm
Ultra-high pressure manual hydraulic pump, ultra-high pressure pneumatic hydraulic pump, ultra-high pressure electric hydraulic pump can be used together

Specs

Model	Working Pressure （Mpa）	bolt diameter	Maximum load (kN)	Body height （mm）	Maximum stroke（mm）	Cylinder body diameter（mm）	Cylinder height（mm）	Support base outside diameter（mm）	Cylinder area of action (mm²)	Weight (kg)
KET-WST-20	150	M20	140	117	20	66	96.5	48	943	1.7
KET-WST-22	150	M22	140	117	20	66	96.5	48	943	1.7
KET-WST-24	150	M24	239	147	30	82	127	60	1569	3.7
KET-WST-27	150	M27	239	147	30	82	127	60	1569	3.7
KET-WST-30	150	M30	239	147	30	82	127	60	2533	3.7
KET-WST-33	150	M33	380	163	30	97	137	77	2533	6
KET-WST-36	150	M36	380	163	30	97	137	77	3676	6
KET-WST-39	150	M39	551	169	30	111	145	90	3676	7
KET-WST-42	150	M42	551	169	30	111	145	90	5868	7
KET-WST-45	150	M45	880	189	30	111	145	90	5868	11.2
KET-WST-48	150	M48	880	189	30	136	158	114	5868	11.2
KET-WST-52	150	M52	880	189	30	136	158	114	10433	11.2
KET-WST-56	150	M56	1564	223	30	177	180	140	10433	21.3
KET-WST-60	150	M60	1567	223	30	177	180	140	10433	21.3
KET-WST-64	150	M64	1564	223	30	177	180	140	10433	21.3
KET-WST-72	150	M72	1564	223	30	177	180	140	17174	33.6
KET-WST-76	150	M76	2576	255	30	217	202	180	17174	33.6
KET-WST-80	150	M80	2576	255	30	217	202	180	17174	33.6
KET-WST-85	150	M85	2576	255	30	217	202	180	17174	33.6
KET-WST-90	150	M90	2576	255	30	217	202	180	17174	33.6
