Feat: Double-stage design, the first stage uses a gear pump, and the second stage uses a booster pump.
Use: Provide various ultra-high pressure hydraulic tools for operation.

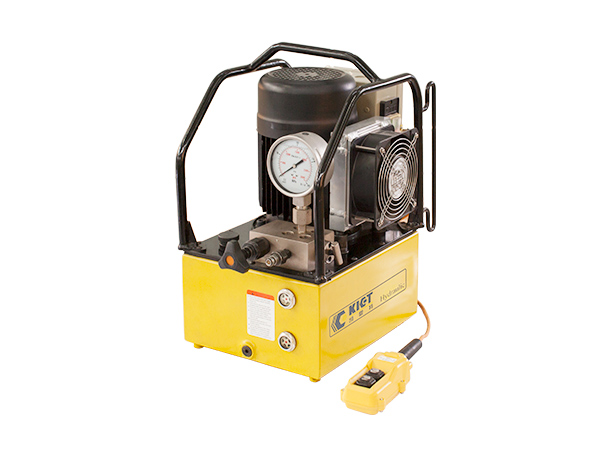

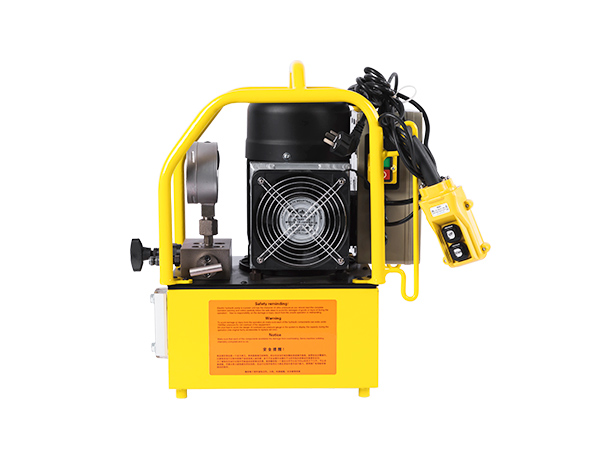

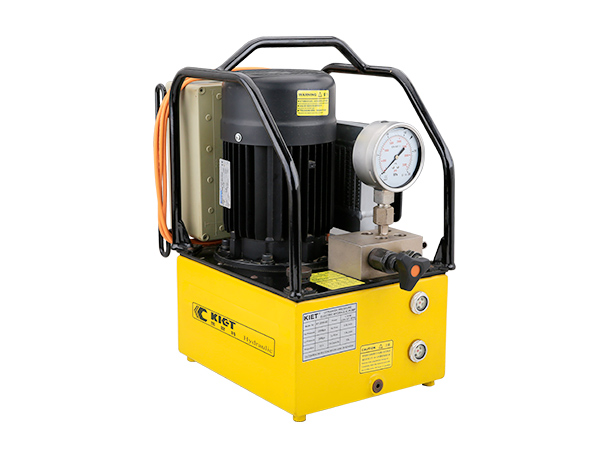

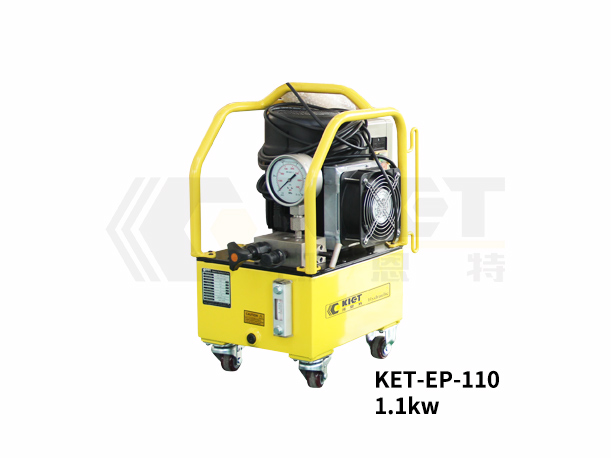

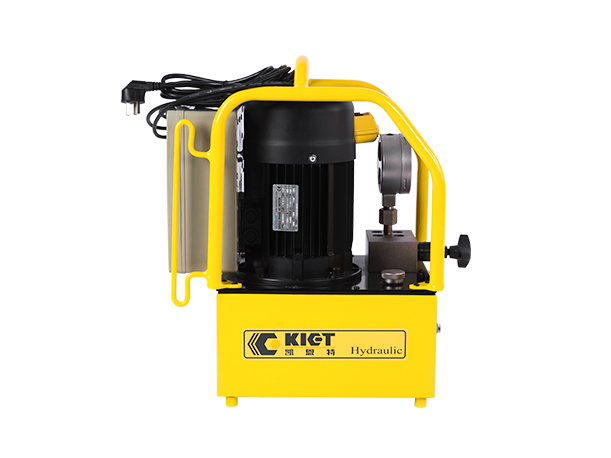

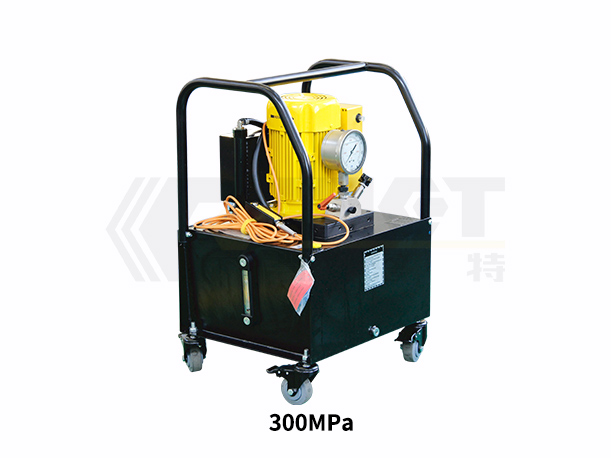

The ultra-high pressure electric hydraulic pump station is suitable for continuous output in various industrial production application fields (100MPa- 300MPa), and can also be directly matched with corresponding ultra-high pressure hydraulic tools for pushing, pulling, expanding, clamping, bending, jacking, and extrusion etc.
| Model | Working Pressure (MPa) | Flow ( L/min) | Voltage (V) | Oil Tank Capacity (L) | Weight (kg) |
| KET-DCB-150 | 150 | 1 | 380 | 25 | 50 |
| KET-DCB-200 | 200 | 0.8 | 380 | 30 | 60 |
| KET-DCB-250 | 250 | 0.4 | 380 | 30 | 60 |
| KET-DCB-300 | 300 | 0.2 | 380 | 30 | 60 |
| Model | Working Pressure （MPa） | Pressure Ratio | Oil Tank Capacity （L） | Flow | Input Power | Output Interface | Dimensions (mm) |
| KET-DCB-2000A-10-6L | 200 | 1:10 | 30 | 6L/min@0bar 0.7L/min@2000bar | 380V, 50HZ | 1 | 580×430×790 |
| KET-DCB-2500A-13-6L | 250 | 1:13 | 30 | 6L/min@0bar 0.5L/min@2500bar | 380V, 50HZ | 1 | 580×430×790 |
| KET-DCB-3000A-16-6L | 300 | 1:16 | 30 | 6L/min@0bar 0.3L/min@3000bar | 380V, 50HZ | 1 | 580×430×790 |
| KET-DCB-2000B-10-6L | 200 | 1:10 | 70 | 6L/min@0bar 0.7L/min@2000bar | 380V, 50HZ | 2 | 580×430×790 |
| KET-DCB-2500B-14-8L | 250 | 1:14 | 70 | 8L/min@0bar 0.7L/min@2500bar | 380V, 50HZ | 1 | 580×430×790 |
| KET-DCB-4000-20-8L | 400 | 1:20 | 70 | 8L/min@0bar 0.5L/min@4000bar | 380V, 50HZ | 1 | 580×430×790 |
| KET-DCB-5000-25-14L | 500 | 1:25 | 70 | 14L/min@0bar 0.2L/min@5000bar | 380V, 50HZ | 1 | 580×430×790 |
