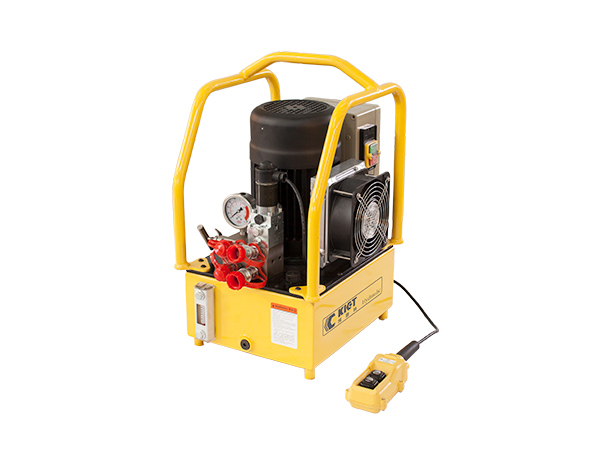

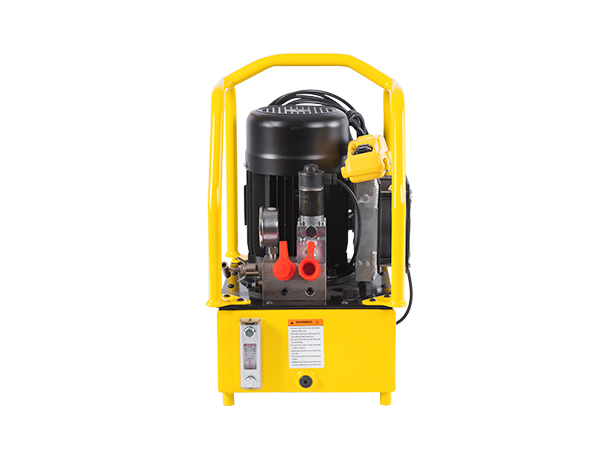

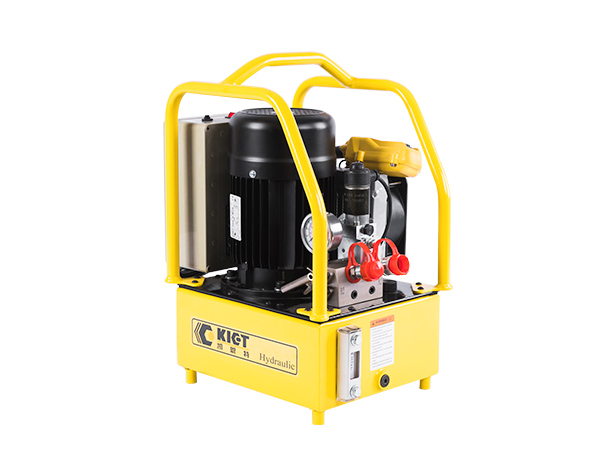

KET-BSB Electric hydraulic Pump for Hydraulic Torque Wrench

Feat: The oil is supplied at the same time by high and low pressure, which can obtain a large output oil.

Use: It is suitable for various hydraulic wrenches.

Details

Features:

Small size and light weight.
Original imported German Harvey overflow valve can carry out pressure adjustment, precise torque setting, with high repeatability. Harvey electromagnetic reversing valve, plunger and other main components assure quality.
The power unit adopts the industry-leading permanent magnet brushless motor design.

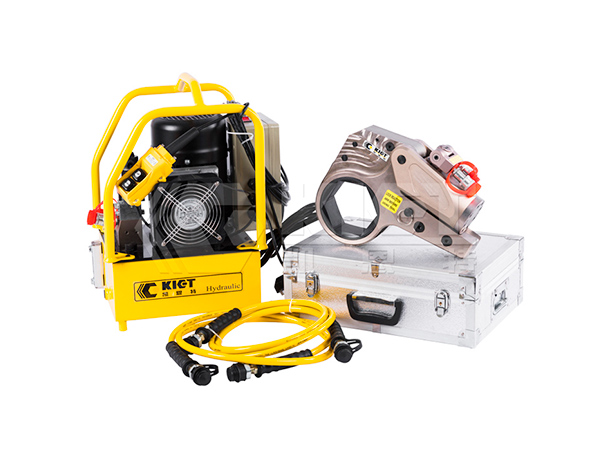

It can be matched with 2 or 4 hydraulic torque wrenches to operate at the same time, improving work efficiency and high tightening accuracy.
Hydraulic oil pipes are available in 6 meters, 9 meters, 12 meters and other specifications.

Specs

Model	Oil Tank Capacit (L)	Motor Power (KW)	Power Supply	Flow (L/min)	Max. Working Pressure (MPa)	Standard Length of Remote Line (mm)	Oil Distributor (PC)	Dimension (mm)	Weight (kg)
KET-BSB-2W	8	2.2	220V/50Hz	2	70	6	2	375×300×410	43
KET-BSB-4W	8	2.2	220V/50Hz	2	70	6	4	375×300×410	43
