Products Hydraulic Pumps
Hydraulic Pumps

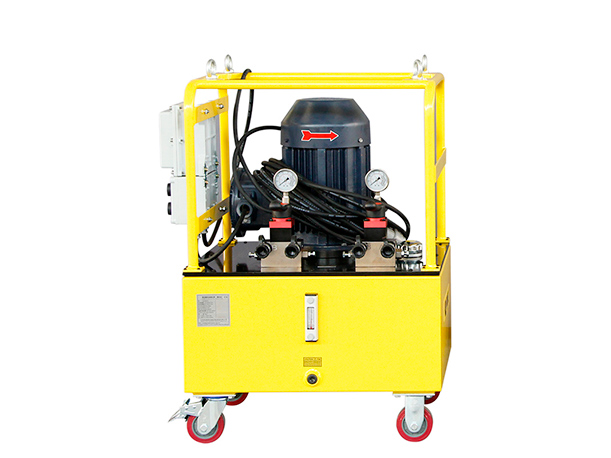

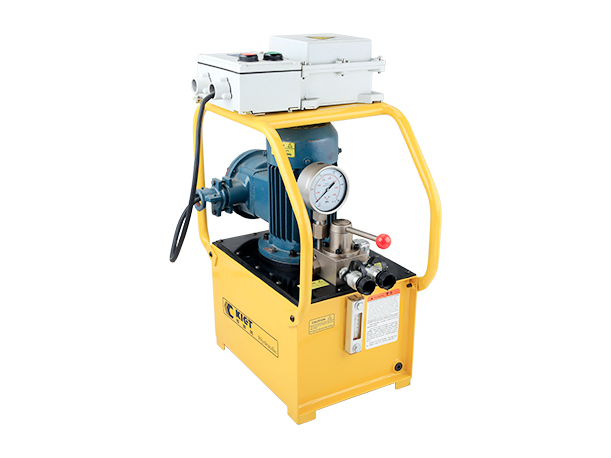

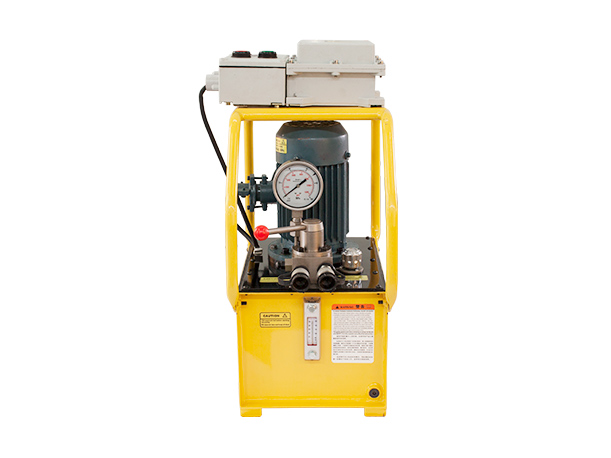

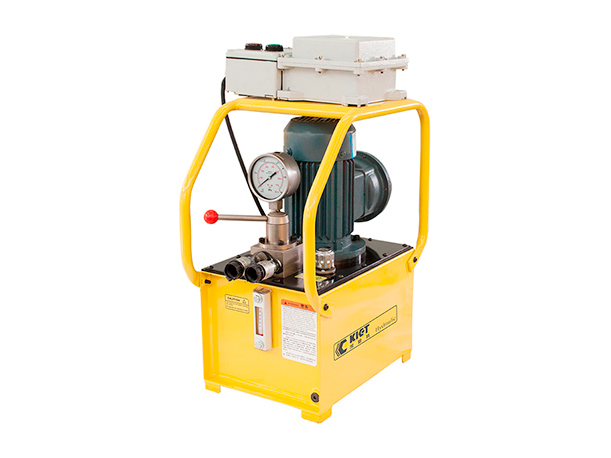

KET-FBB Anti-explosion Electric Hydraulic Pump

Feat: Explosion-proof motor, explosion-proof electric control box.

Use: Specially for chemicals, coal mines and special needs explosion-proof occasions.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details

Anti-explosion electric hydraulic pump is especially designed for the the explosion proof situation like in chemical industry, coal mine place.

Features:
  • Explosion proof electric motor, Explosion proof electric cabinet
  • Drag line controller( explosion proof).
  • Low running noise.
  • The hydraulic oil temperature is low under the condition of continuous work.
  • The gauge was filled by silicone oil.
  • 380V, three phase, 50Hz explosion proof type of motor, explosion proof electric cabinet.
  • With the function of over current and over voltage circuit protection.
  • Over load circuit protection.
Specs
Model Working  Pressure (MPa) Pump Type Valve Type Oil  Tank  Capacity (L) Motor  Power (KW) Flow  (L/min) Voltage  (V) Current  Frequency (HZ) Outlet Size Dimensions  (mm)
KET-FBB-380 70 double acting Manual valve 16 0.75 1 380 50 NPT3/8 500X400X760
