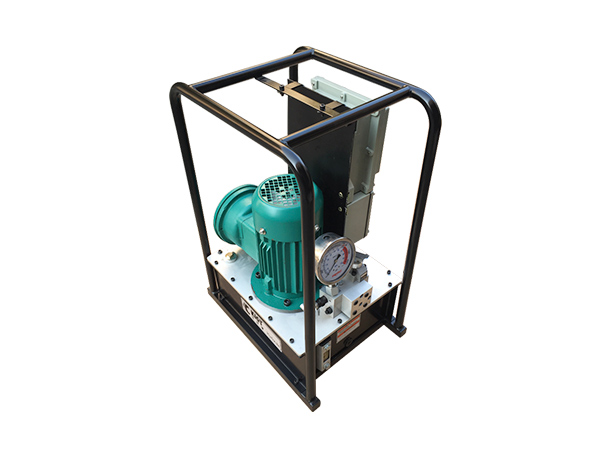

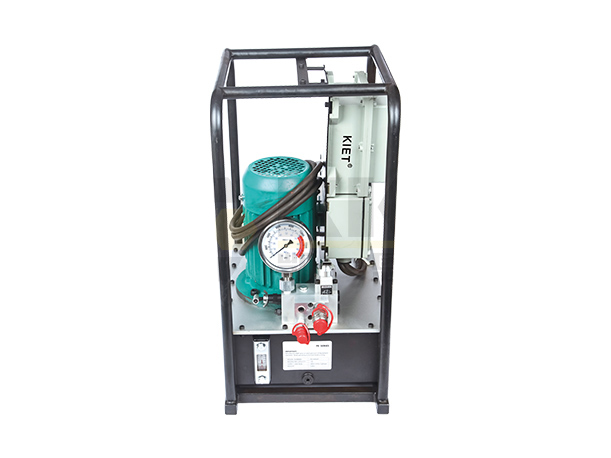

KET-BFB Special Anti-explosion Electric Hydraulic Pump for Wrenches

Feat: Advanced three-stage flow design, fast speed, low, medium and high voltage different flows and transmission torque are ideally matched.

Use: Designed for powering hydraulic wrenches without electric spark or flame hazards.

Detail
Tech
Case
Vid
Also

Details

Anti-explosion electric hydraulic pump for wrenches is safe, reliable andpower ultra high pressure hydraulic tools. No electric spark or flame hazard. easy to operate,

Product Features:

Adopt EX d ll Bt4 type explosion-proof magnetic motor starter
high output torque valve
manualvalve, easy to operate
Advanced three stages flow design, high speed. Low, middle, high different pressure withdifferent flow, which can achieve the best match with transmission torque.
Supporting hydraulic torque wrenches are used in petrochemical, oil pipelines, natural gas pipelines, coal mining and other enterprises.

Specs

Model	Working Pressure (MPa)	Motor Power (KW)	Power Supply	Flow (L/min)	Oil Tank Capacity (L)	Weight (kg)	Dimensions (mm)
KET-BFB-70	70	1.1	330V/50Hz/ Three phase	8.0@0-6.5MPa 1.8@6.5-32MPa 0.85@32-70MPa	14	55	475×335×620

Model	Working Pressure（MPa）	Oil Tank Capacity(L)	Motor Power （KW）	Power Supply	Flow（L/min）	Dimensions(mm)	oil outlet	Weight （kg）
KET-PEX-2	70	14	1.1	330V/50Hz/ Three phase	8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa	475×335×620	2	55
KET-PEX-4	70	14	1.1	330V/50Hz/ Three phase	8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa	475×335×620	4	55
