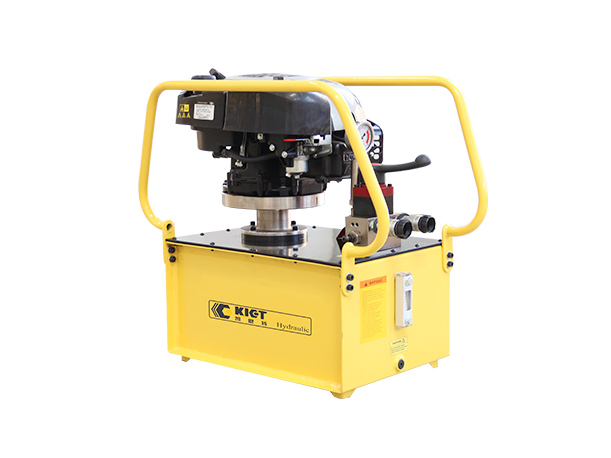

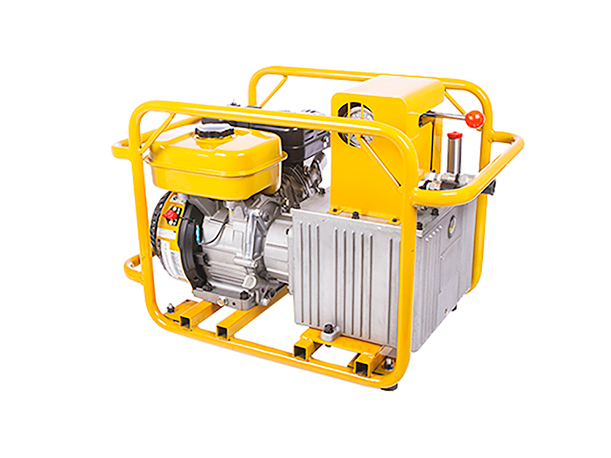

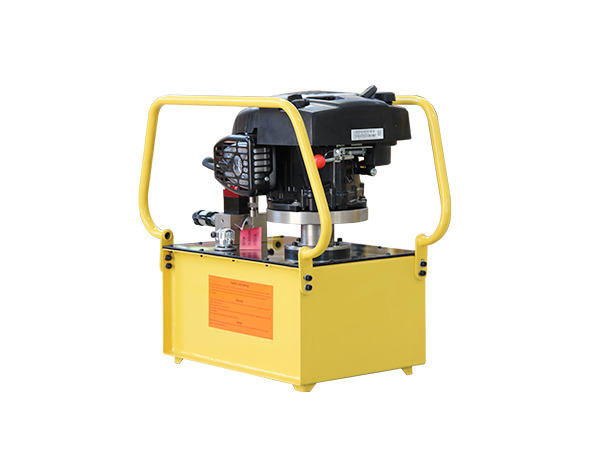

KET-QBZ Gasoline Engine Hydraulic Pump

Feat: Large oil storage capacity, can withstand large capacity crimping equipment and is suitable for long-term operation, so as not to overheat the engine.

Use: Adopts a high and low voltage dual-speed automatic switching design, and is equipped with crimping machines such as 60T, 100T, 200T, 300T, etc.

Detail
Tech
Case
Vid
Also

Details

Features:

Large oil tank. It can be used together with high capacity hydraulic tools for a long time.
Gasoline engine driven, suitable for construction work with hydraulic tools in the field
Rated pressure is 70MPa.
Low noise, environmental protection design. Efficient and fast output performance.
Simple construction, easy operation, light weight for easy moving.
Dual-circuit manual control, internal design return pressure protection
Safety relief valve, good protection for the crimping equipment.

Specs

Model	Working Pressure (MPa)	Oil Tank Capacity (L)	Engine Rotating Speed (rpm/min)	High Pressure Flow (L/min)	Low Pressure Flow （L/min）	Weight (with hydraulic oil) (kg)
KET-QBZ-700	70	16	3600	1.5	6	53
KET-HPE-700	70	42	3600	1.5	6	58
