Hydraulic Pumps
Portable Ultra High Pressure Pneumatic Pump
Portable Ultra High Pressure Pneumatic Pump
Portable Ultra High Pressure Pneumatic Pump

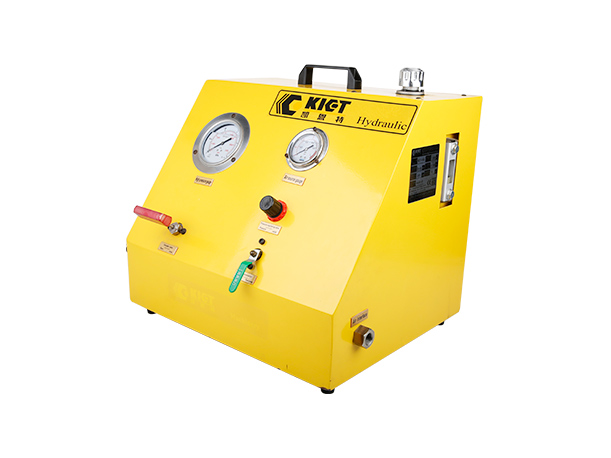

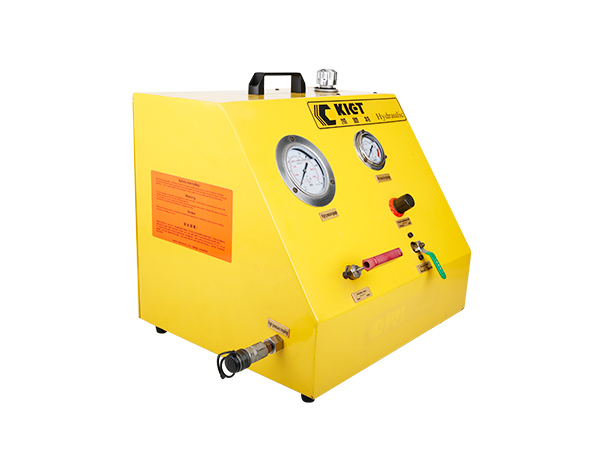

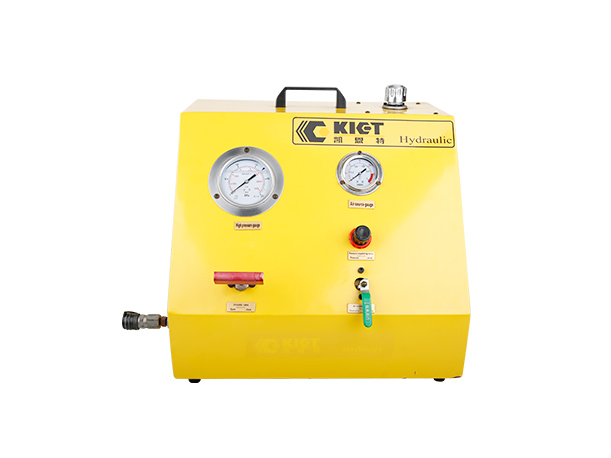

KET-QDB Portable Ultra High Pressure Pneumatic Pump

Feat: Compressed air drive, no electric spark or flame hazard.

Use: It is equipped with hydraulic bolt stretchers, hydraulic nuts and other various ultra-high pressure hydraulic tools.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
Features:
  • Power source of this pump is compressed air to achieve the linear output of the super high pressure. Easy, safe and reliable in operation. Can be matched with many super high pressure hydraulic tools, like bolt tensioners, hydraulic nuts, supper high pressure nut splitters etc.
  • Driving air pressure: 6-8 Bar, air control system includes filter, hydraulic control valve, flow control valve, stainless steel pressure gauge.
  • The diameter of the gauge is 100 mm and is silicone oil filled for quake proof purpose.
Specs
Model Working Pressure
(MPa)		 Boost Ratio Output Flow
(L/min)		 Oil Tank Capacity
(L)		 Air Pressure
(Bar)		 Air Input
Size		 Dimensions
(mm)
KET-QDB-150 150 188 0.9 4.5 8 NPT1/2 600×460×500
KET-QDB-200 200 250 0.49 4.5 8 NPT1/2 600×460×500
KET-QDB-250 250 400 0.4 4.5 6.5 NPT1/2 600×460×500
Cases
[Hydraulic pump station]Used with various hydraulic tools
[Hydraulic pump station]Used with various hydraulic tools
Video
Related
KET-SSB/SDB/DSB Electric Hydraulic Pump
Working Pressure：70MPa
Oil Tank Capacity：10 ~ 100L
Motor Power：0.55 ~ 7.5KW
KET-DCB Ultra-High Pressure Electric Hydraulic Pump
Working Pressure：150 ~ 300MPa
Oil Tank Capacity：25 ~ 30L
Output Flow：0.2 ~ 1L/min
KET-PA Pneumatic Hydraulic Foot Pump
Working Pressure：70MPa
Air Pressure Range：4.1 ~ 8.3
Usable Oil Capacity：589 ~ 1311ml
KET-QDB Portable Ultra High Pressure Pneumatic Pump
Working Pressure：150 ~ 250MPa
Output Flow：0.1 ~ 0.4L/min
Usable Oil Capacity：4.5L
