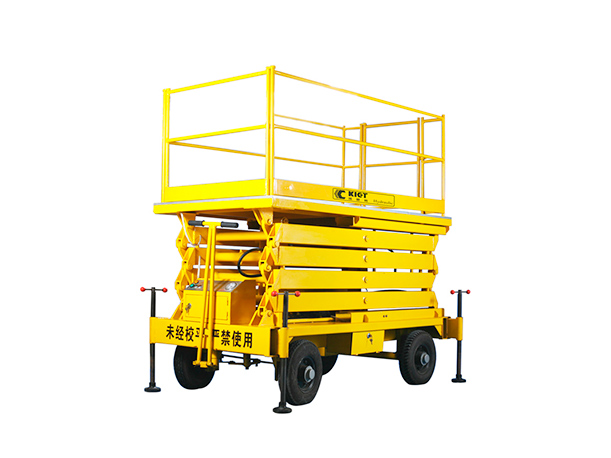

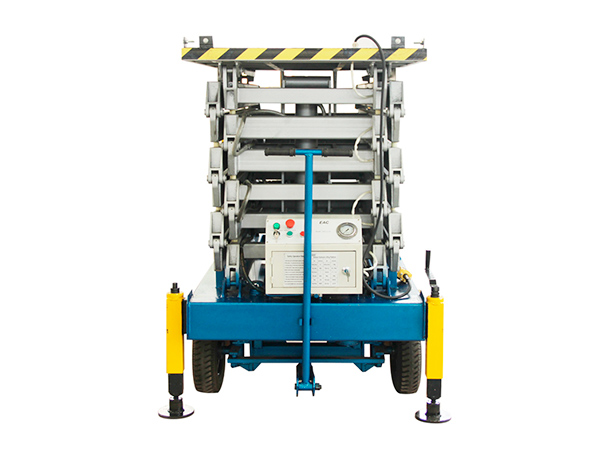

KET-JCS Scissor type hydraulic lifting platform

Feat: Scissors mechanical structure makes the lifting platform have higher stability after lifting.

Use: Suitable for installation of high-altitude equipment in tall buildings such as factories, construction sites, hotels, warehouses, airports, stations, docks, and stadiums.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details

The scissor type aerial work platform is a widely used special equipment for aerial work. It relies on external power traction and scissors-type mechanical structure to make the lifting platform have higher stability after lifting, a wide working platform and high load-bearing capacity, making high-altitude operation efficiency and safer.

It is suitable for installation, maintenance and cleaning of high-altitude equipment in tall buildings such as factories, construction sites, hotels, warehouses, airports, stations, docks, stadiums, etc., as well as maintenance of high-altitude equipment, outdoor power facilities, lifting machinery maintenance, etc. It is an ideal equipment to ensure operation safety and improve work efficiency, making high-altitude operation more convenient and fast.

Specs
Spec Rated load(㎏) Max h(㎜) Min h(㎜) Station dimension (㎜) Lifting time (s) Motor power (Kw) Power (V) Weight(㎏)
KET-JCS-0.3-3 300 3000 770 1300×700 20 0.55 380V/50HZ 350
KET-JCS-0.5-4.5 500 4500 980 1300×850 30 0.75 380V/50HZ 400
KET-JCS-1-4.5 1000 4500 1350 1500×1000 35 1.5 380V/50HZ 600
KET-JCS-0.3-6 300 6000 98 1800×880 58 0.75 380V/50HZ 700
KET-JCS-0.5-6 500 6000 1130 1800×880 60 0.75 380V/50HZ 750
KET-JCS-1-6 1000 6000 1500 1800×1000 65 2.2 380V/50HZ 1000
KET-JCS-0.3-7.5 300 7500 1280 1800×1000 64 1.1 380V/50HZ 800
KET-JCS-0.3-9 300 9000 1330 1800×1000 74 1.1 380V/50HZ 1100
KET-JCS-0.5-9 500 9000 1520 1800×1000 81 1.1 380V/50HZ 1200
KET-JCS-1-9 1000 9000 1840 2000×1200 75 2.2 380V/50HZ 1850
KET-JCS-0.3-11 300 11000 1620 2100×1150 93 1.5 380V/50HZ 1300
KET-JCS-0.5-11 500 11000 1620 2100×1150 105 1.5 380V/50HZ 1400
KET-JCS-0.3-12 300 12000 1820 2450×1350 110 2.2 380V/50HZ 1850
KET-JCS-0.5-12 500 12000 1820 2450×1350 115 2.2 380V/50HZ 1880
KET-JCS-1-12 1000 12000 1840 2450×1350 120 3 380V/50HZ 1950
KET-JCS-0.3-14 300 14000 1980 2450×1350 124 2.2 380V/50HZ 1980
KET-JCS-0.5-14 500 14000 1980 2450×1350 130 2.2 380V/50HZ 2050
KET-JCS-0.3-16 300 16000 2140 2600×1500 145 3 380V/50HZ 2300
