Feat: Adopts a non-cut plastic processing technology, which has stable operation, low noise and high working efficiency.

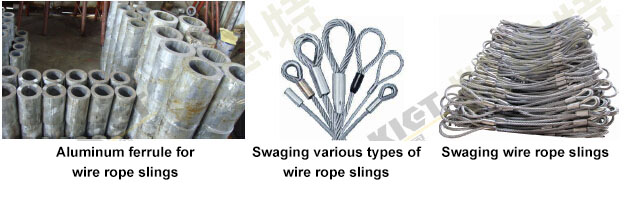

Use: used for pressing of various rigging aluminum sleeves.

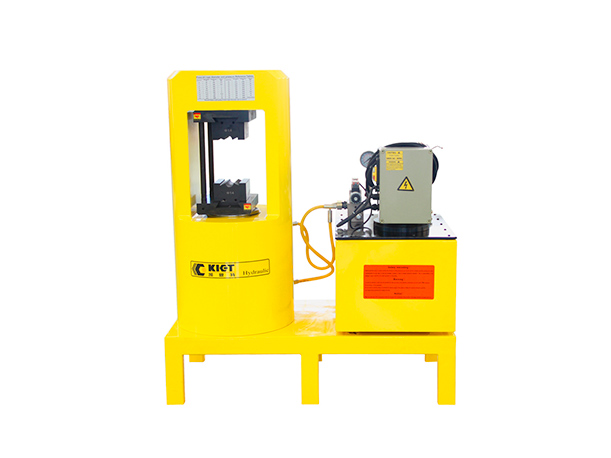

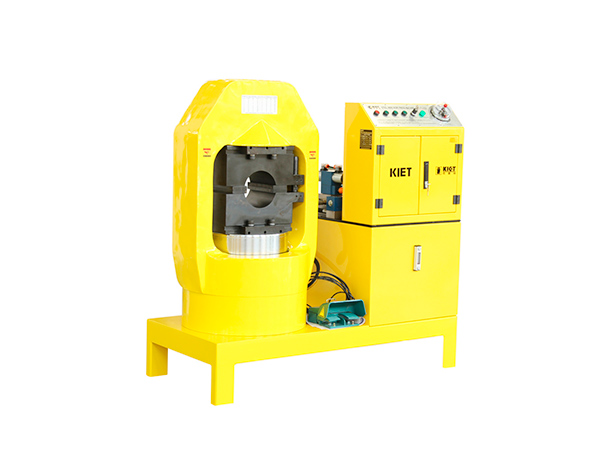

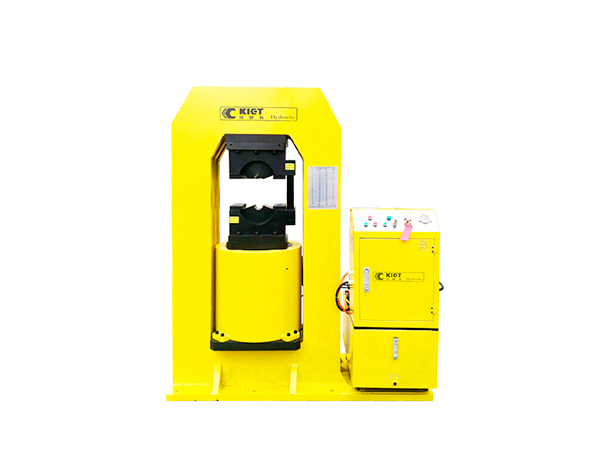

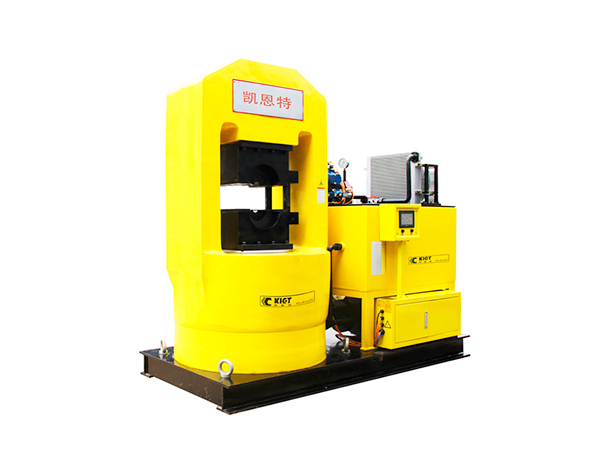

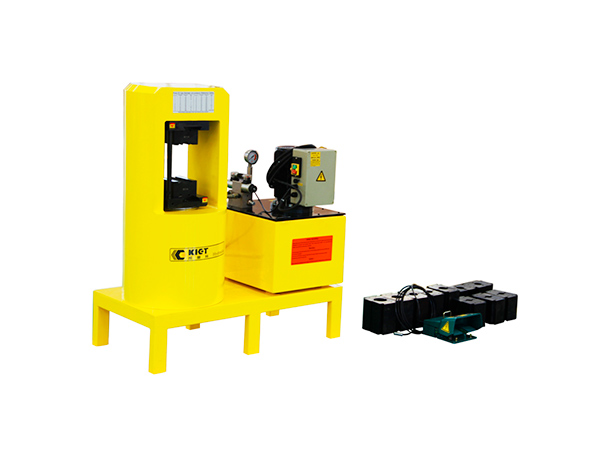

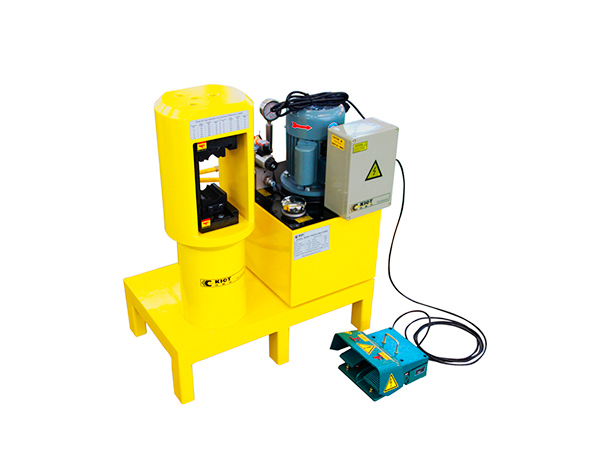

Hydraulic Steel Wire Rope Swagging Machine, developed independently by KIET, is a new machine with aesthetic aircraft design and advanced technology manufacturing. The main component of the body is made of high-quality alloy steel which makes it durable. The machine is operated with hydraulic power, it features compact structure, stable operation, low noise, high efficiency.

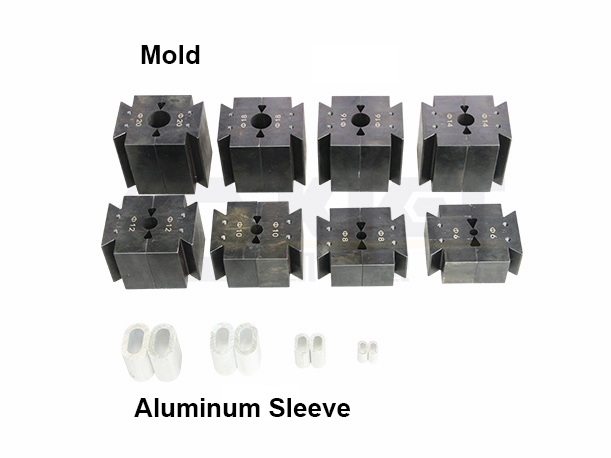

It is processed in non-cutting shape technology, without destroying the strength of the wire, making the premise of soft metal in the mold cavity full flow, tighten the steel wire rope, through the friction between the steel wires to achieve the purpose of forming. At present, we have 100T, 200T, 300T, 500T, 800T, 1000T, 1500T, 2000T, 3000T, 5000T, etc.
| Model | Capacity（T） | Wire Rope Diameter（mm） | Working Pressure（MPa） | Motor Power（KW） | Voltage（V） | Current Frequency（HZ） | Weight（Kg） |

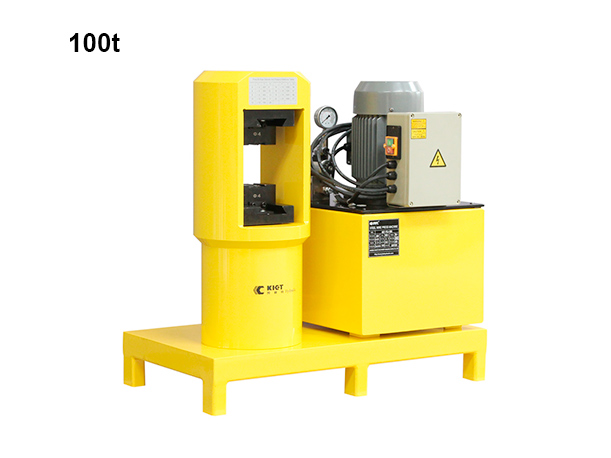

| KET-YTJ-100 | 100 | 6-14 | 70 | 0.75 | 380 | 50 | 200 |

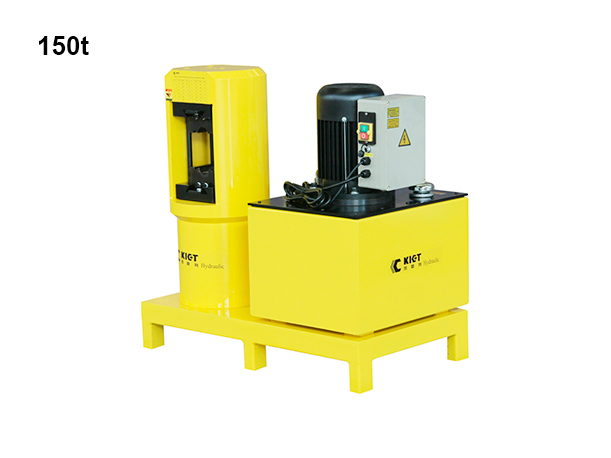

| KET-YTJ-150 | 150 | 6-20 | 70 | 2.2 | 380 | 50 | 375 |
| KET-YTJ-350 | 350 | 6-32 | 70 | 2.2 | 380 | 50 | 420 |
| KET-YTJ-500 | 500 | 6-38 | 28 | 7.5 | 380 | 50 | 2040 |
| KET-YTJ-800 | 800 | 10-48 | 30 | 15 | 380 | 50 | 4010 |
| KET-YTJ-1000 | 1000 | 10-56 | 63 | 7.5 | 380 | 50 | 4508 |
| KET-YTJ-1500 | 1500 | 10-65 | 70 | 5.5 | 380 | 50 | 10000 |
| KET-YTJ-2000 | 2000 | 10-78 | 28 | 30 | 380 | 50 | 21453 |
![[Wire Rope Pressing Machine]Used for pressing the aluminum sleeve of steel wire rope](https://www.chinakiet.com/KIET_upLoad/JJFA/71/s.jpg)
