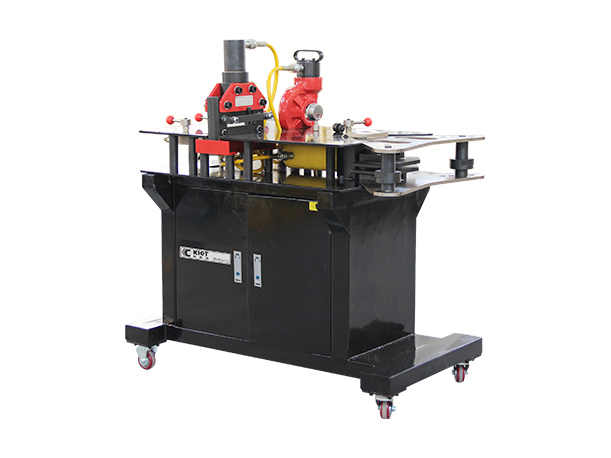

Multifunctional Busbar Processing Machine_Hydraulic Equipment_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Details

Product Features:

Bending angle can set within 1-120°, with pedal control switch.
Safe operating system, operating without worrying about security.
Easy to replace the molds based on different work, improving the work efficiency.
With 70Mpa hydraulic system, of low noise, strong work, durable use.
The open workbench ensures the work-piece does not deflect after bending.
Punching without flash, cutting off with formation, fished with precised angle, alarge number of busbar processing can be quickly repeated.
Equipped with cutting and punching double positioning ruler, bending andbending angle mark ruler.

Specs

Model	Functions	Voltage	Working Pressure (MPa)	Cutting Capacity (T)	Punching Capacity (T)	Bending Capacity (T)	Weight (kg)	Cutting Ability (mm)	Horizontal Bending Ability (mm)	Vertical Bending Ability (mm)	Bending Ability
KET-JGJ-3	Cutting, Punching Horizontal bending	Single phase 220V 50Hz	70	25	30	15	15	Cu/AI: 150×12	Cu/AI: 150×12	/	/
KET-JGJ-4	Cutting, Punching Horizontal bending, Vertical bending	Single phase 220V 50Hz	70	25	30	25	153	Cu/AI: 150×12	Cu/AI: 152×16	Cu/AI: 125×12	/
KET-JGJ-5	Cutting, Punching, Horizontal bending, Vertical bending, Bending	Single phase 220V 50Hz	70	25	30	25	160	Cu/AI: 150×12	Cu/AI: 152×16	Cu/AI: 125×12	3”

Model	Punching Thickness (mm)	Standard Punching Dies (mm)	Bending Dies	Platform Size (mm)	Optional Accessories (mm)
KET-JGJ-3	4-13	Φ10.5, Φ13.5, Φ17.5, Φ20.5	/	910×600×1000	Φ8.5, Φ11.5, Φ15.5, Φ18.5punching die
KET-JGJ-4	4-13	Φ10.5, Φ13.5, Φ17.5, Φ20.5	Horizontal bending mould 1 piece, Vertical bending mould base 1set, Vertical bending mould 8 pieces （40-80×4, 40-80×5, 40-80×6, 40-80×8, 40-80×10, 100×10, 100-125×10, 120-125×12）, Vertical bending supporting block 6pieces（4, 5, 6, 8, 10, 12）	910×660×1100	Φ8.5, Φ11.5, Φ15.5, Φ18.5punching die
KET-JGJ-5	4-13	Φ10.5, Φ13.5, Φ17.5, Φ20.5	Horizontal bending mould 1 piece, Vertical bending mould base 1set, Vertical bending mould 8 pieces （40-80×4, 40-80×5, 40-80×6, 40-80×8, 40-80×10, 100×10, 100-125×10, 120-125×12）, Vertical bending supporting block 6pieces（4, 5, 6, 8, 10, 12）, Bending mould 7 pieces（1⁄2, 3⁄4, 1, 1⁄2, 2, 2⁄2, 3）	910×7600×1160	Φ8.5, Φ11.5, Φ15.5, Φ18.5punching die
