Hydraulic Roll Changing Tool for High Line_Hydraulic Equipment_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Details

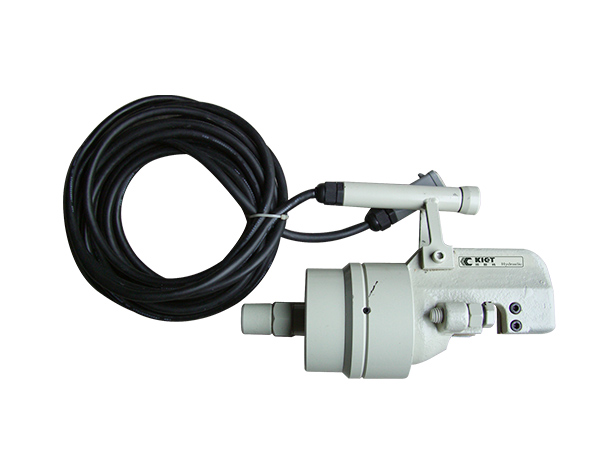

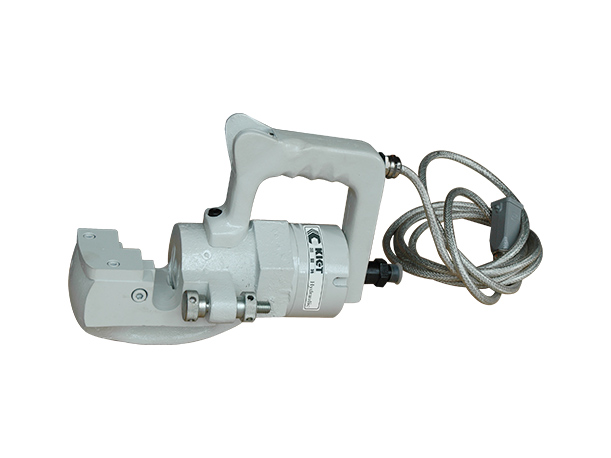

This scissors are used for de-heading, de-tailing, sampling and other operations in the production process of high-speed wire rods and bars. They are suitable for various types of high line factories. They are used in conjunction with special electric hydraulic pump stations. The maximum shear diameter is 55mm. The maximum output can reach 140T, and it can cut alloy steel bars with a hardness of HRC38 within 2.5 seconds.

The scissor cylinder body is made of special alloy steel material by the method of casting. Blade design: The four sides of the blade can be cut, and the special composite alloy material and special design increase the efficiency by 4 times.

Specs

Model	Capacity (T)	Stripping Diameter for Corresponding Strength of Wire(mm)				Balance Crane Matched	Dimensions (mm)								Weight (kg)
Model	Capacity (T)	≤700MPa	≤1000MPa	≤1300MPa	≤1600MPa	Balance Crane Matched	A	B	C	D	E	F	G	H	Weight (kg)
KET-RCU-10	10	10	8	7	6.5	14	45	42	15	155	32	115	-	75	4.5
KET-RCU-20	20	20	17	15	13	B20	106	80	26	251	60	95	80	94	14
KET-RCU-30	30	22	19	17	15	B20	106	80	26	260	65	95	80	94	16
KET-RCU-50	50	30	26	23	20	B30	167	120	32	355	140	125	115	146	43
KET-RCU-60	60	40	33	29	26	B30	172	112	42	380	140	135	115	175	46
KET-RCU-80	80	45	36	31	27	B45	200	135	45	470	140	160	140	205	85
KET-RCU-120	120	50	40	35	29	B50	200	135	52	490	154	160	140	250	108
KET-RCU-150	150	55	36	36	30	-	280	164	59	615	140	230	185	280	185
