Hydraulic Cylinders
Single Acting Standard Hydraulic Cylinder

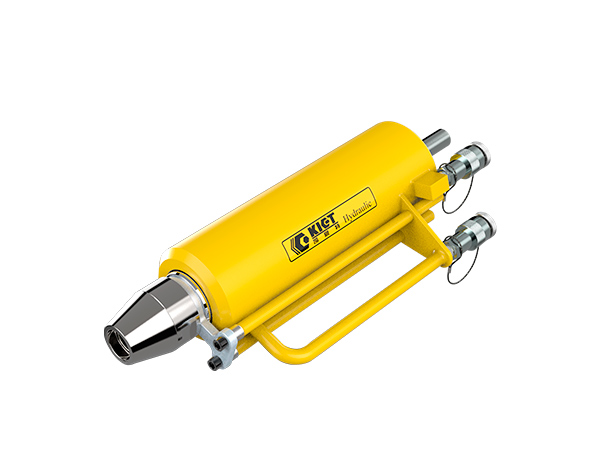

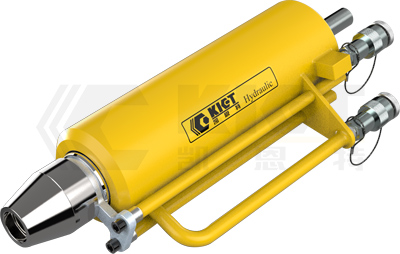

KET-JAD Single Acting Standard Hydraulic Cylinder

Feat: With wedge lock cylinder, suitable for different strand configurations.

Use: suitable for places with small horizontal space.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
Product Features：

  • Available in single- or double-acting models
  • Ideal for working on steps where dirt, heat and heavy use can cause damage
  • Suitable for applications with low horizontal space that can be inserted into the cylinder
  • With wedge lock cylinder, suitable for different strand (tendon) configurations
  • The enamel exterior and chrome piston provide excellent corrosion protection
  • All models come with C8F quick couplings and dust covers
  • Capacity and itinerary can be customized
Specs
Model Capacity (T) Stroke (mm) Outside diameter (mm) Hole diameter (mm) Retract height (mm) Working pressure （Mpa） Piston range (mm)
KET-JAD-10 10 200 88 12 390 66 15.26
KET-JAD-20 20 200 105 12 465 66 30.63
KET-JAD-30 30 200 115 20 496 65 47
Cases
Tensioning Hydraulic Jacks for Pre-stressing Steel Strands in Precast Box Girders
Tensioning Hydraulic Jacks for Pre-stressing Steel Strands in Precast Box Girders
