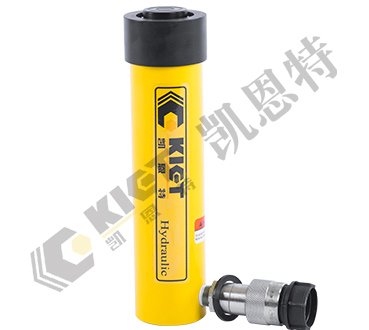

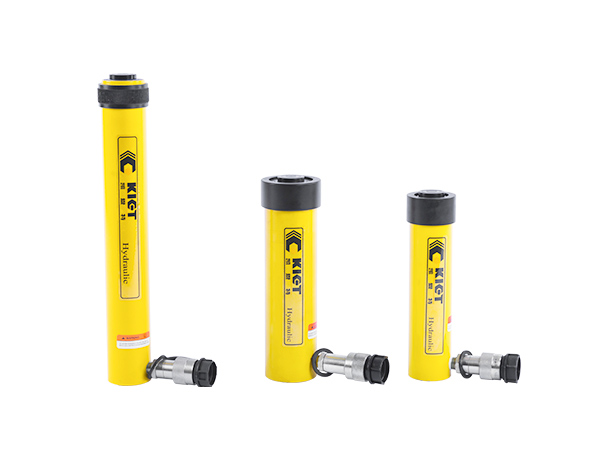

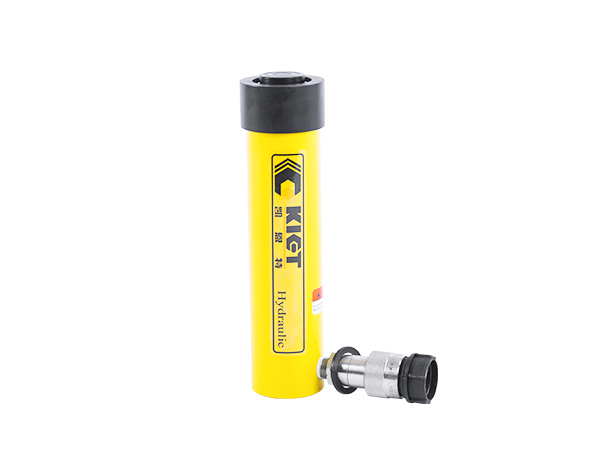

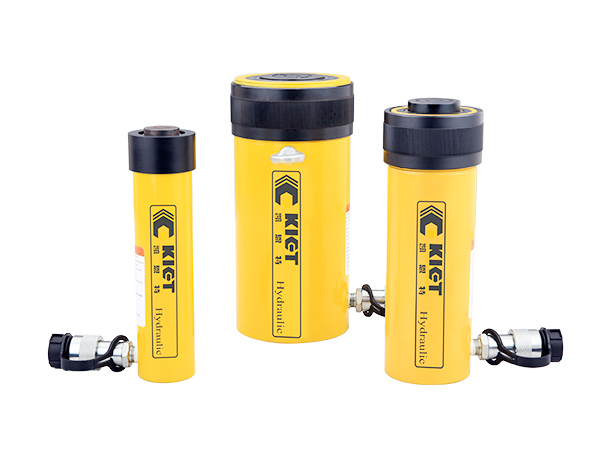

Single acting hydraulic cylinder with the most extensive range of stroke length and lifting capacity, is the best choice for maintenance, produce, manufacture, architecture and other operations. Neck thread can withstand full load, the unique double guide ring technology can easily absorb partial load, reduce wear, prolong service life. Outer ring thread, most models with plunger thread and bottom mounting hole, making use of positioning more convenient.
● Single acting, heavy-duty return springs

● High strength alloy steel for durability

● Plated steel plungers

● Stop ring to prevent the plunger over stroke, the piston top standard antiskid saddle

● Collar threads, plunger threads and base mounting holes enable easy fixturing

● Baked enamel finish for increased corrosion resistance

● Removable strap handles for unobstructed fixturing

● Plunger wiper reduces contamination, extending cylinder life

● 3/8 “- 18NPT coupler and dust cap included on all models.

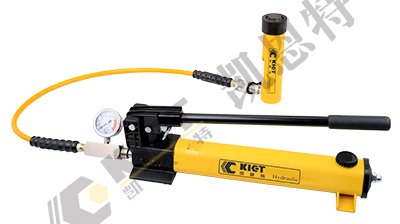

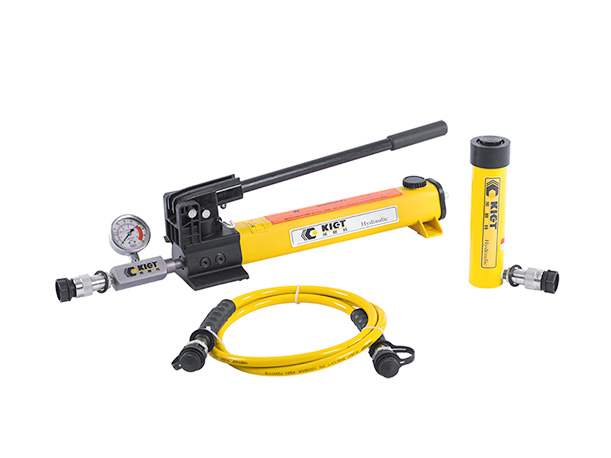

Single-Acting Hydraulic Jack with KET-P-392 Manual Pump

● Pros: Allows a single person to operate the jack and perform lifting. An extended hose can be added for remote operation.
● Cons: Requires more manual effort and time.

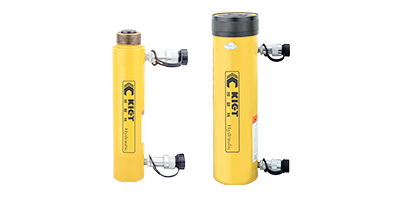

● For controlled retraction of the piston, you should choose a double-acting jack.

● For a lower body height and a larger working stroke, please consider our low profile hydraulic cylinders

● If you need the piston rod to pass through a steel cable or threaded rod, please select our hollow plunger jacks.

● For higher lifting capacities (300 tons, 500 tons, or more), please choose our electric hydraulic jacks.

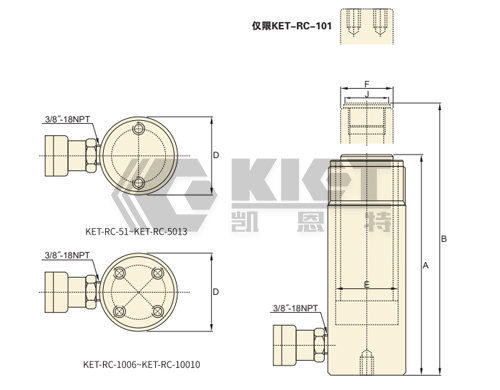

Specs

Model	Capacity	Stroke	Effective Area	Oil Capacity	Coll. Height	Ext. Height	O.D	Saddle Dia.	Weight
Model	(T)	(mm)	(cm2)	(cm3)	(mm)	(mm)	(mm)	(mm)	(kg)
KET-RC-51	5	25	6.5	16	110	135	38	25	1.0
KET-RC-53	5	76	6.5	50	165	241	38	25	1.5
KET-RC-55	5	127	6.5	83	215	342	38	25	1.9
KET-57	5	177	6.5	115	273	450	38	25	2.4
KET-RC-59	5	232	6.5	151	323	555	38	25	2.8
KET-RC-101	10	26	14.5	38	89	115	57	–	1.8
KET-RC-102	10	54	14.5	78	121	175	57	35	2.3
KET-RC-104	10	105	14.5	152	171	276	57	35	3.3
KET-RC-106	10	156	14.5	226	247	403	57	35	4.4
KET-RC-108	10	203	14.5	294	298	501	57	35	5.4
KET-RC-1010	10	257	14.5	373	349	606	57	35	6.4
KET-RC-1012	10	304	14.5	441	400	704	57	35	6.8
KET-RC-1014	10	356	14.5	516	450	806	57	35	8.2
KET-RC-151	15	25	20.3	51	124	149	69	38	3.3
KET-RC-152	15	51	20.3	104	149	200	69	38	4.1
KET-RC-154	15	101	20.3	205	200	301	69	38	5.0
KET-RC-156	15	152	20.3	308	271	423	69	38	6.8
KET-RC-158	15	203	20.3	411	322	525	69	38	8.2
KET-RC-1510	15	254	20.3	516	373	627	69	38	9.5
KET-RC-1512	15	305	20.3	619	423	728	69	38	10.9
KET-RC-1514	15	356	20.3	723	474	830	69	38	11.8
KET-RC-251	25	26	33.2	86	139	165	85	50	5.9
KET-RC-252	25	50	33.2	166	165	215	85	50	6.4
KET-RC-254	25	102	33.2	339	215	317	85	50	8.2
KET-RC-256	25	158	33.2	525	273	431	85	50	10.0
KET-RC-258	25	210	33.2	697	323	533	85	50	12.2
KET-RC-2510	25	261	33.2	867	374	635	85	50	14.1
KET-RC-2512	25	311	33.2	1033	425	736	85	50	16.3
KET-RC-2514	25	362	33.2	1202	476	838	85	50	17.7
KET-RC-308	30	209	42.1	880	387	596	101	50	18.1
KET-RC-502	30	51	71.2	362	176	227	127	71	15.0
KET-RC-504	30	101	71.2	719	227	328	127	71	19.1
KET-RC-506	30	159	71.2	1131	282	441	127	71	23.1
KET-RC-5013	30	337	71.2	2399	460	797	127	71	37.6
KET-RC-756	75	156	102.6	1601	285	441	146	71	29.5
KET-RC-7513	75	333	102.6	3417	492	825	146	71	59.0
KET-RC-1006	100	168	133.3	2239	357	525	177	71	59.0
KET-RC-10010	100	260	133.3	3466	449	709	177	71	72.6
