Hydraulic Cylinders
Double Acting Pull Hydraulic Cylinder
Double Acting Pull Hydraulic Cylinder
Double Acting Pull Hydraulic Cylinder
Double Acting Pull Hydraulic Cylinder

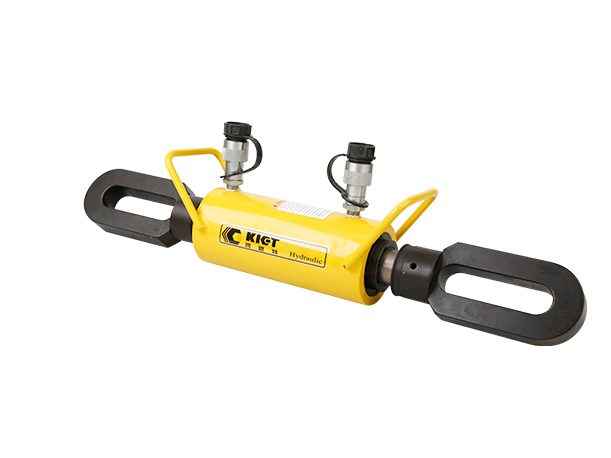

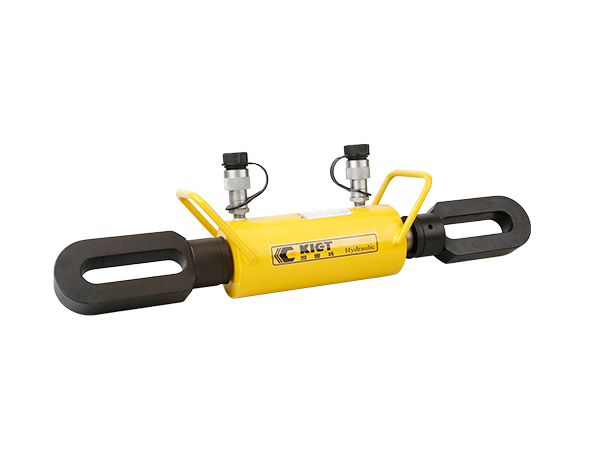

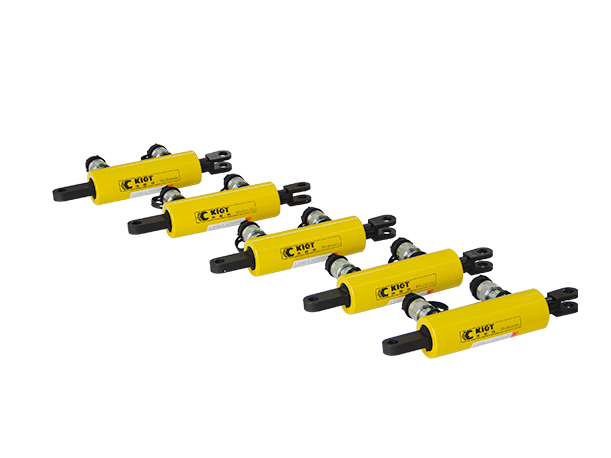

KET-DRC Double Acting Pull Hydraulic Cylinder

Feat: Double acting, hydraulic return stroke.

Use: It is suitable for occasions that need to be stretched and closed.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
  • Double acting, hydraulic return
  • Pull type design, suitable for stretching and folding operation.
  • Both ends with earrings, easy to connect with the object.
  • Built in safety valve to prevent over pressure.
  • Scraper seal reduces contamination, extending cylinder life.
  • Optional lifting valve group, to ensure the safety and steady of lifting.
  • 3/8 “- 18NPT coupler and dust cap included on all models.

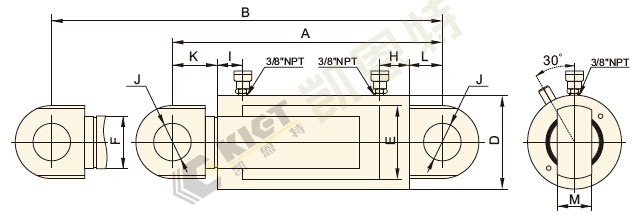

Specs
Model Capacity (T) Body Height (mm) Effective Stroke (mm) Effective Area (cm²) Oil Volume  (cm³) Extended Height (mm) Cylinder Outer Diameter  (mm) Cylinder Inner Diameter  (mm) Plunger Diameter (mm) Weight (kg)
KET-DRC-10 10 606 160 13.5 217 766 86 55 36 18
KET-DRC-30 30 733 160 44 703 893 125 90 50 40
KET-DRC-50 50 727 160 70 1125 887 148 110 56 63
Cases
Applications of Pull-Type Hydraulic Cylinders
Applications of Pull-Type Hydraulic Cylinders
Video
Related
KET-BRC/BRP Single Acting Pull Hydraulic Cylinder
Capacity：2.5 ~ 50t
Effective Stroke：127 ~ 155mm
Closed Height：264 ~ 1085mm
KET-HPS Integrated push and pull cylinder
Capacity：10 ~ 20t
Effective Stroke：100mm
Closed Height：876 ~ 1022mm
KET-TL Shield machine posture adjustment cylinder
Thrust：1000t
Stroke：480mm
Closed Height：2160mm
KET-TL Lifting balanced hydraulic cylinder
Thrust：200t
Stroke：1000mm
Closed Height：2443mm
