Feat: Double-connected design, the jacking tonnage is double that of a single one.
Use: Shipyard main engine adjustment, power plant steam engine overhaul and other occasions.

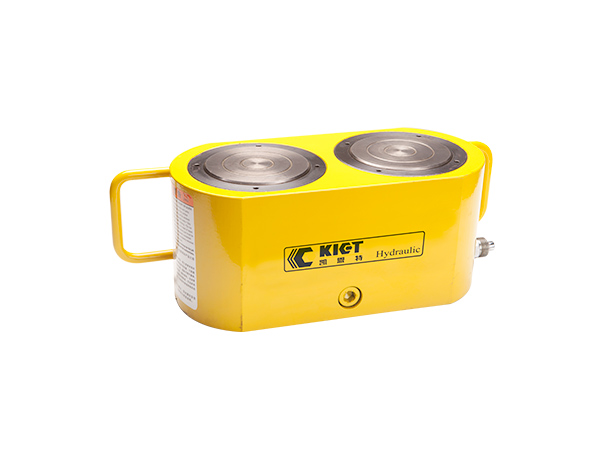

Conjoined twin hydraulic cylinder,Innovative design,Narrow twin hydraulic cylinder,Lifting apacity 100×2=200Ton,Suitable for special confined spaces, It can be customized according to customers requirements.
Mainly used in confined spaces, for example: marine diesel engine adjustment in shipyard, steam turbine overhaul in power plant and so on.
Conjoined twin hydraulic cylinder designed to be twin cylinders, to make the outside diameter of single cylinder down, and the output tonnage is constant. Conjoined twin hydraulic cylinder synchronous output, it is especially suitable for the lifting and pushing in confined spaces.
| Model | Working Pressure (MPa) | Capacity (T) | Stroke (mm) | Coll. Height (mm) | Outside Diameter (mm) | Plunger Diameter (mm) | Weight （Kg） |
| (T) | (MPa) | (mm) | (mm) | (mm) | (mm) | (Kg) | |
| KET-DC-10032 | 100T×2 | 70MPa | 32 | 150 | 340×165 | 110 | 54 |
| KET-DC-10050 | 100T×2 | 70MPa | 50 | 165 | 340×165 | 110 | 65 |
| KET-HDC-10050 | 100T×2 | 200MPa | 50 | 250 | 330×134 | 66 | 87 |
