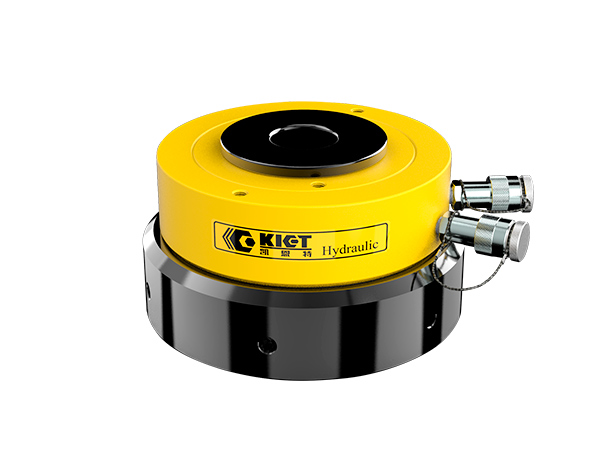

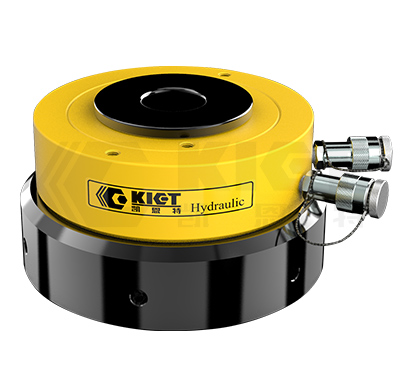

High Tonnage Lock Nut Cylinder_Hydraulic Cylinders_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Details

Product Features：

Large tonnage lock nut cylinder that can withstand mechanical loads of up to 1000 tons
Double action for forward retraction
The integral stop ring provides piston overdraft protection
Painted exterior coatings and chrome pistons provide excellent corrosion protection
All models are equipped with 3/8-18NPT ultra-high pressure quick couplings and high strength aluminum titanium threaded protective sleeves

Specs

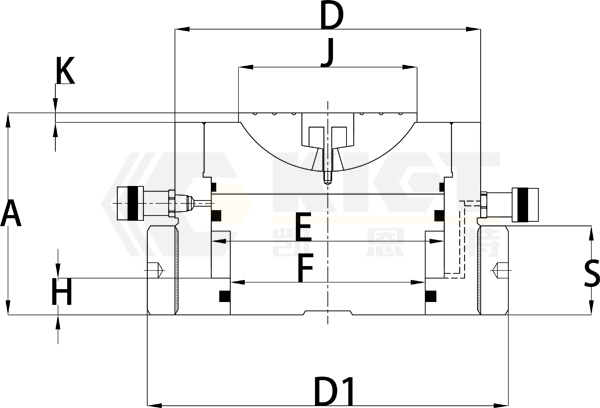

Model	Capacity (T)	Working Stroke (mm)	Piston Area (cm²)	Body Height A	Oil Volume (cm³)	Extended Height B (mm)	jack diameter (mm)	Self-locking snail Female diameter D1	Hole Diameter E (mm)	Plunger specificationsF (mm)	Brake ring height H	saddle diameter J	Saddle and brake ring tolerances K	Self-locking snail Female thicknessS	Weight (kg)
KET-SDL-1002	100	50	143.14	188	716	238	180	225	135	120	35	115	10	90	46
KET-SDL-1004	100	100	143.14	238	1431	338	180	225	135	120	35	115	10	140	60
KET-SDL-1502	150	50	213.82	190	1069	240	220	260	165	140	35	135	10	90	63
KET-SDL-1504	150	100	213.82	240	2138	340	220	260	165	140	35	135	10	140	81
KET-SDL-2002	200	50	283.53	197	1418	247	250	295	190	160	35	155	12	90	83
KET-SDL-2004	200	100	283.53	247	2835	347	250	295	190	160	35	155	12	140	107
KET-SDL-2502	250	50	363.05	200	1815	250	280	330	215	180	35	175	12	95	106
KET-SDL-2504	250	100	363.05	250	3631	350	280	330	215	180	35	175	12	145	136
KET-SDL-3002	300	50	433.77	212	2169	262	305	360	235	200	40	195	12	100	135
KET-SDL-3004	300	100	433.77	262	4337	362	305	360	235	200	40	195	12	150	170
KET-SDL-4002	400	50	572.56	238	2863	283	350	420	270	225	45	215	15	100	199
KET-SDL-4004	400	100	572.56	283	5726	383	350	420	270	225	45	215	15	150	243
KET-SDL-5002	500	50	730.62	238	3653	288	390	460	305	250	45	240	15	112	245
KET-SDL-5004	500	100	730.62	288	7306	388	390	460	305	250	45	240	15	160	300
KET-SDL-6002	600	50	866	245	4328	295	420	500	332	270	45	260	15	115	296
KET-SDL-6004	600	100	866	295	8657	395	420	500	332	270	55	260	15	165	362
KET-SDL-8002	800	50	1146.16	280	5821	330	490	580	385	320	55	310	20	125	455
KET-SDL-8004	800	100	1146.16	330	11462	430	490	580	385	320	55	310	20	175	545
KET-SDL-10002	1000	50	1452.2	305	7261	355	540	650	430	350	55	340	30	130	600
KET-SDL-10004	1000	100	1452.2	355	14522	455	540	650	430	350	55	340	30	180	712
