Feat: Adopt expansion ring technology to separate the flange without gaps.
Use: The separation of flange with extremely small gaps, even blind plates without gaps, and the spade plate flange.

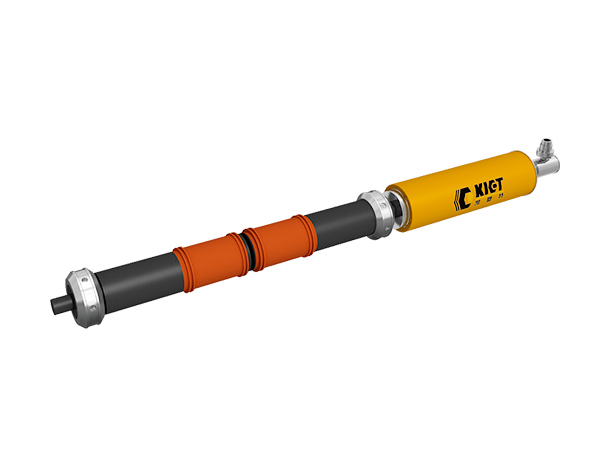

Zero-gap coaxial hydraulic flange spreader use expansion ring technology to provide monitoring and regulated spreading forces, while the spread flange can be the best tool for insertion and removal of even gapless blind plate and plate flanges.
| Model | Working Pressure (MPa) | Cylinder output (T) | Hose length (m) | Weight （kg） |
| KET-ZG18TE | 70 | 13 | 2 | 45 |
| KET-ZG25TE | 70 | 25 | 2 | 50 |
