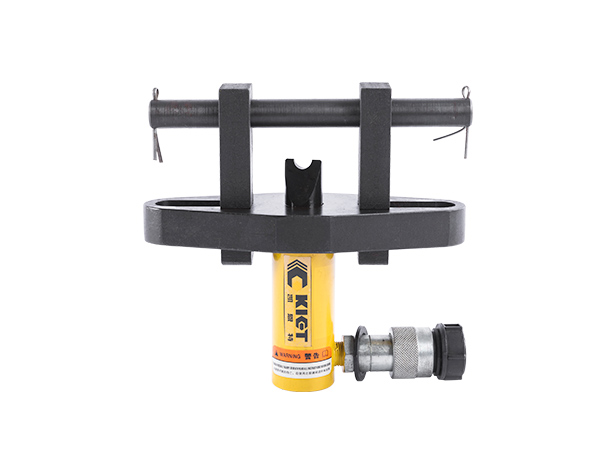

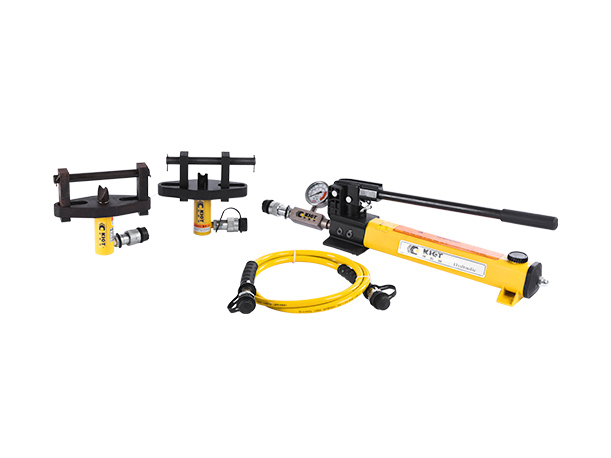

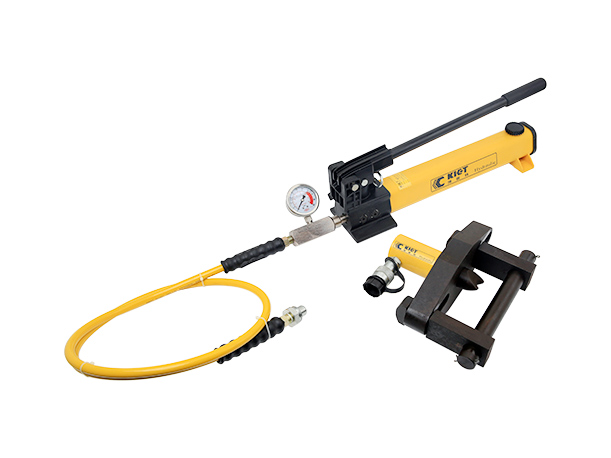

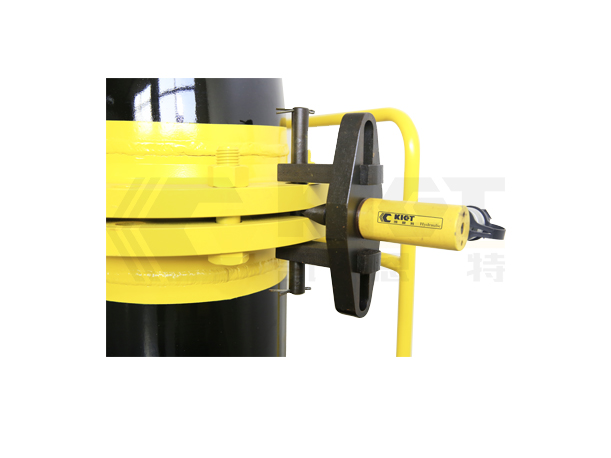

Split hydraulic flange splitter apply to petrochemical, metallurgical, electric power and other industries to maintain pipe and other large mechanical connection of the demolition and maintenance.

Its reversible leg design, provides a wider flange range of applications. And the guide rod through the flange hole design, improves the safety of operation. Suitable for small flange tip clearance situation. Lightweight, ergonomic design for ease to use, adjustment jaw width from 70 mm to 216 mm for a wide range of applications. Single acting, spring return of hydraulic cylinder, can use for flanges which thickness and maximum spread does not exceed 152.4 mm and bolt size is not less than 20.7 mm.

• Innovative reversible structure design to expand the range of applicable flanges;
• Unique dual-angle wedge cone can produce greater separation output without detracting the effective distance of separation;
• Rust-proof, lightweight, easy to carry;
• Requires tip clearance of only 2mm;
• Powerful, lightweight tool;
• Separation output: 5T, 10T.
