The axle box bearing disassembly and assembly device is a special tool for disassembling axle box bearings. This device consists of an axle box bearing disassembly and assembly device (industrial computer), a disassembly puller (with an adjustable lifting platform), and a disassembly tooling (consisting of a device body, a pressure seat, and a piston).

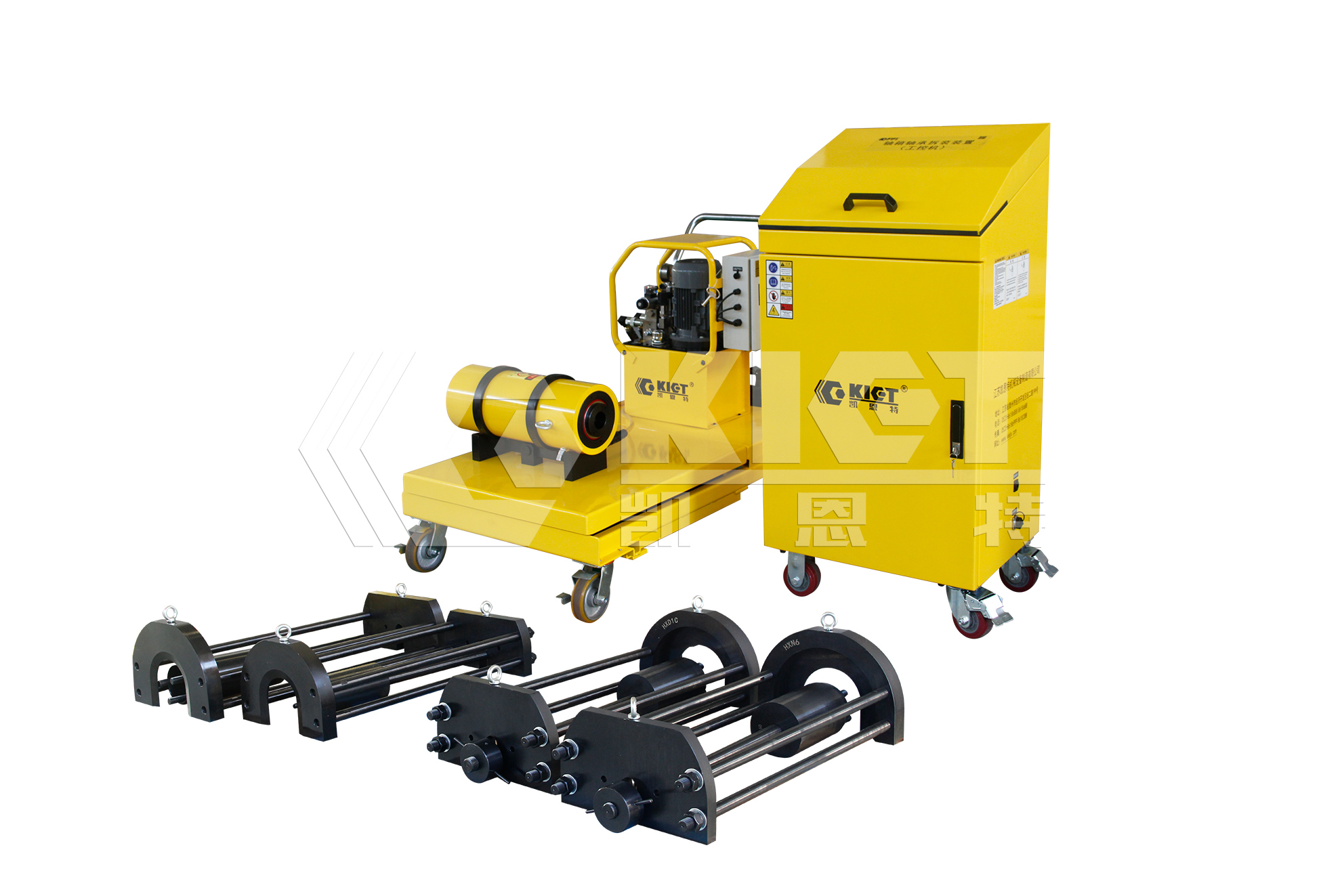

Axle box bearing disassembly and assembly device

Parameters of Axle box bearing disassembly and assembly device

Working Pressure: 70Mpa

Cylinder Pushing Force: 1011KN

Working Stroke: 310mm

Motor Power: 1.1KW

Center Hole Diameter: 50mm

Power Supply: 3AC 380V 50Hz

Working Flow: 1L/min

Oil Tank Capacity: 16L

Displacement Sensor Range: 0-1000mm

Pressure Sensor Range: 0- 70MPa
