Four-point synchronous lifting load positioning system configuration scheme

The four-point synchronous lifting load positioning system is developed to balance the vibration when heavy objects are suddenly started or stopped during hoisting. The cylinder is equipped with an internal sensor for automatic positioning and adjustment.

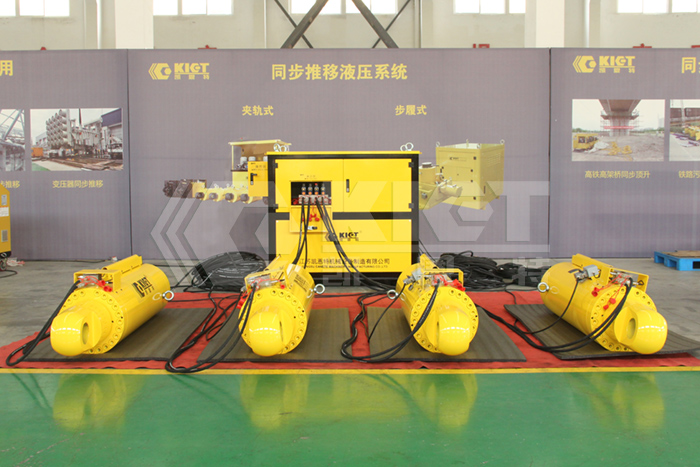

Configuration list of four-point synchronous lifting load positioning system: 1 set of PLC multi-point synchronous lifting load positioning system, 4 units hoisting balance hydraulic cylinders.

Parameters of PLC multi-point synchronous lifting load positioning system:

Model: KET-DBTB-4E

Motor Power: 4.0KW×4

Adjusting Speed: 50mm/min

System Flow: 6.25L/min×4

System Rated Pressure: 28MPa

Synchronization accuracy: ±0.2mm

Oil Tank Capacity: 720L

Parameters of hoisting balance hydraulic cylinders:

Model: KET-PHD-150T-1000

Capacity: 150T

Working Stroke: 1000mm

Total Length: 2366mm

Working Pressure: 28Mpa
