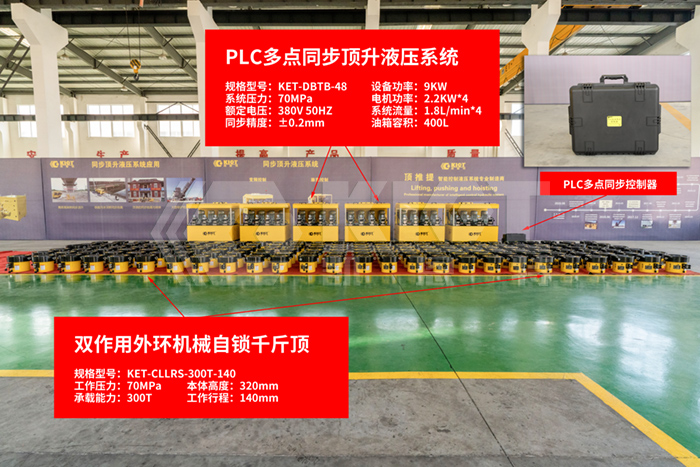

200-point synchronous lifting configuration scheme

200-point synchronous lifting configuration list: PLC multi-point synchronous lifting hydraulic systems 6 sets, Synchronous controller 1 set, Hydraulic cylinder 240 units

Parameters of the PLC multi-point synchronous lifting hydraulic system:

Model: KET-DBTB-48

System Pressure: 70MPa

Rated Voltage: 380V 50HZ

Synchronization Precision: ±0.2mm

Equipment Power: 9KW

Motor Power: 2.2KW*4

System Flow: 1.8L/min*4

Oil Tank Capacity: 400L

Parameters of double acting self-locking jack with outer ring nut:

Model: KET-CLLRS-300T-140

Working Pressure: 70MPa

Carrying Capacity: 300T

Closed Height: 320mm

Working Stroke: 140mm
