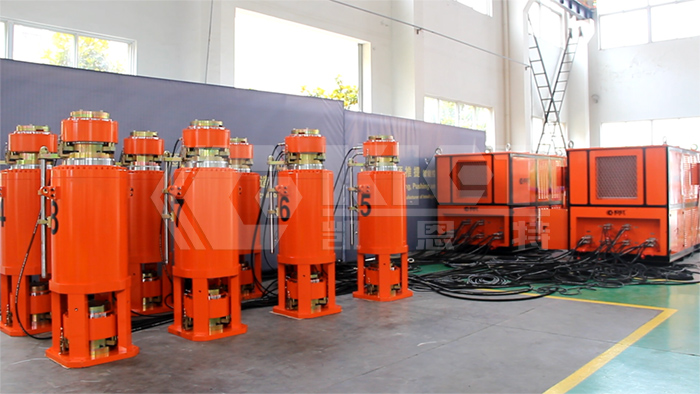

Configuration scheme of the eight point steel strand synchronous lifting system

The steel strand synchronous lifting system is controlled by a computer. It connects heavy objects with steel strands and lifts and lowers the heavy objects by pulling and retracting the steel strands. The lifting points can be expanded to increase the rated weight of the lifting.

Configuration list of eight point steel strand synchronous lifting system: 8 units strand jacks and 1 set of synchronous hoisting hydraulic system.

Parameters of strand jacks:

Model: KET-TSD-4000B

Hoisting Capacity: 400T

Closed Height: 2160mm

Working Stroke: 500mm

Steel strand Quantity: 27

Working Pressure: 28Mpa

Steel Strand Diameter: 28mm

Parameters of synchronous hoisting hydraulic system:

Working Pressure: 28Mpa

System Power: 4X18.5KW

Hoisting Speed: 6 meters/hour
