Feat: One-piece screw hydraulic structure, no need for additional hydraulic pump and connecting oil pipe.
Use: Ultra-thin mechanical jack flat design, suitable for other hydraulic jacks can not be applied in narrow space.

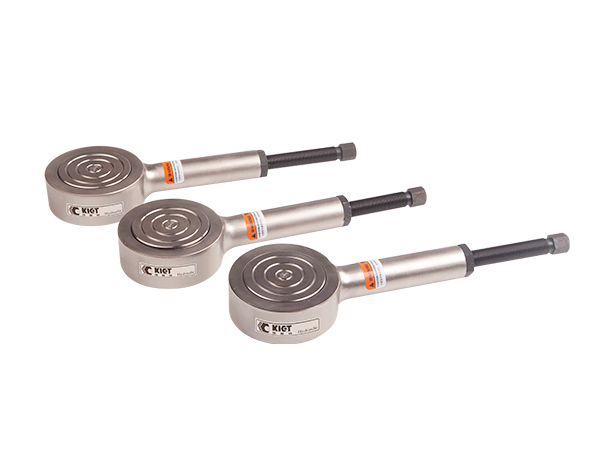

Ultra Low Height Mechanical Cylinder is primarily used in situations with extremely limited space, such as: replacing supports for highway bridges, adjusting main engines in shipyards, and lifting steam turbines for maintenance in power plants.
● Ultra low height mechanical cylinder’s compact, flat design, used in confined spaces where most cylinders will not fit;
● Light, short, easy to carry, barrier-free working;
● High-strength alloy steel, extending service life and strength;
● Integrated screw hydraulic structure, no need additional hydraulic pump and hose;
● Lifting capacity: 5T-50T, Working stroke: 5mm-25mm.

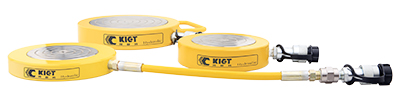

● For an extremely low body height, please choose our ultra-low flat jacks.
● For a lower body height and a larger working stroke, please consider our low profile hydraulic cylinders
● If you need the piston rod to pass through a steel cable or threaded rod, please select our hollow plunger jacks.
● For higher lifting capacities (300 tons, 500 tons, or more), please choose our electric hydraulic jacks.
| Model | Capacity（T） | Collapsed Height （㎜） | Stroke （㎜） | Max. Height （㎜） | Outside Diameter （㎜） | Max. Length （㎜） | Min. Length （㎜） |
| KET-SMC-525 | 5 | 52 | 25 | 77 | 52 | 275 | 195 |
| KET-SMC-1025 | 10 | 54 | 25 | 79 | 62 | 348 | 237 |
| KET-SMC-2005 | 20 | 35 | 5 | 40 | 84 | 289 | 218 |
| KET-SMC-3005 | 30 | 36 | 5 | 41 | 95 | 314 | 236 |
| KET-SMC-5005 | 50 | 40 | 5 | 45 | 120 | 401 | 293 |
