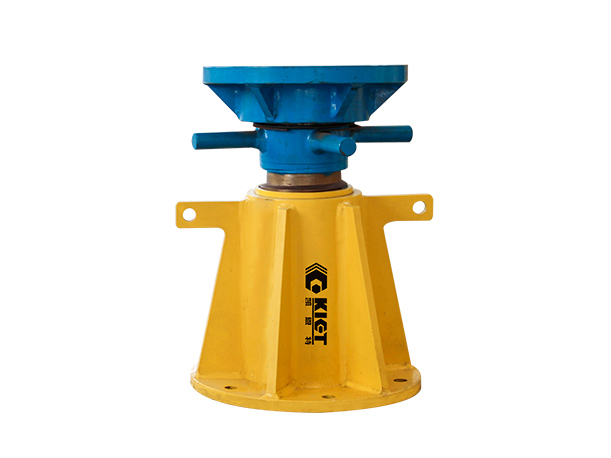

KET-JXD Mechanical Support

Feat: Unique guiding design to improve the product's anti-eccentric load ability and durability.

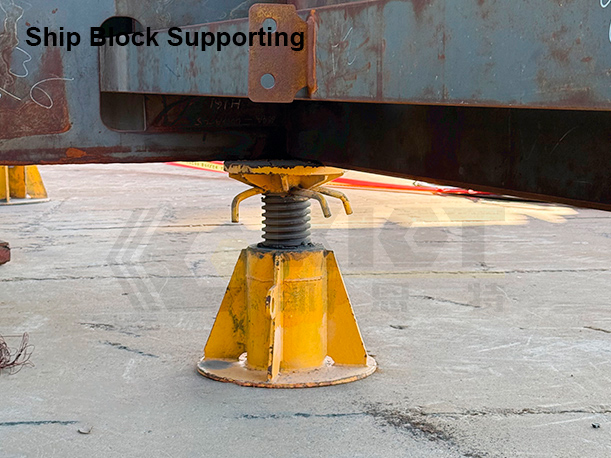

Use: For long-term support of hull sections.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
  • Screw structure design, dedicated to long-term support of hull sections.
  • It can be adjusted within a certain range, which can make the whole hull segmented support system highly adjustable, the structure design is reasonable, with the characteristics of large bearing tonnage, small volume, small nut rotation torque, etc., the top is designed with an eccentric saddle, the device can rotate within 5 ° angle to achieve a unique guide design of "surface" contact, and improve the anti-eccentric load ability and durability of the product.
  • The screw is treated with a special coating and has a strong anti-corrosion ability, and the standard screw turning handle is convenient for the height adjustment of the segmented buttresses.
Specs
Model No. Capacity(t) Closed Height(mm) Height adjustment(mm) Extension height(mm) Tilt angle(°) Fixture hole(mm) Weight(kg)
KET-JXD-5010 50 430 250 680 5 6 14 60
KET-JXD-1008 100 420 200 620 5 6 14 80
KET-JXD-10010 100 470 250 720 5 6 14 90
KET-JXD-2008 200 430 200 630 5 6 22 160
KET-JXD-20012 200 530 300 830 5 6 22 180
KET-JXD-3008 300 460 200 660 5 6 26 240
KET-JXD-30012 300 560 300 860 5 6 26 300
