Feat: long working stroke, large tonnage, suitable for horizontal jacking operation.
Use: Mostly used for supporting synchronous jacking hydraulic system for synchronous translation of ancient buildings, jacking construction of underground pipelines.

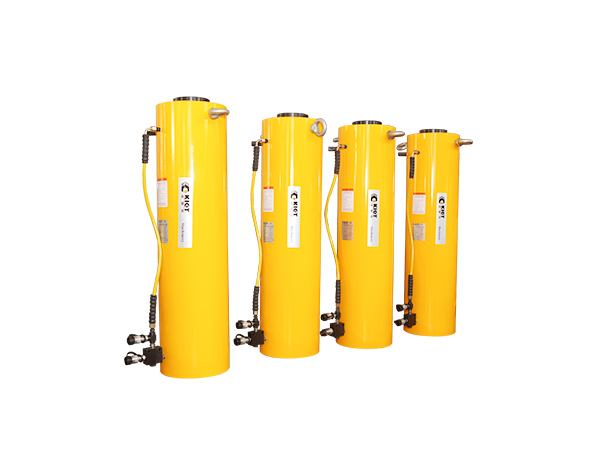

Long stroke hydraulic cylinder has the characteristic of long working stroke, large tonnage, suitable for horizontal lifting operations. At present, it is mainly matched use with synchronous lifting system for synchronous translation of ancient buildings and pushing project of underground pipeline (named hydraulic pipe pushing machine). Long stroke cylinders series are widely used in municipal, railway, bridge, highway, underground drainage projects and box culverts pushing projects of railway bridges. Note: All kinds of stroke hydraulic cylinders can be customized according to field requirements.
| Model | Capacity （T） | Working Pressure （MPa） | Length of Stroke （mm） | Dimensions （mm） | Weight （kg） |
| KET-CXC-200-150 | 200 | 31.5 | 150 | 290×513 | 238 |
| KET-CXC-200-250 | 200 | 31.5 | 250 | 290×613 | 274 |
| KET-CXC-200-350 | 200 | 31.5 | 350 | 290×713 | 309 |
| KET-CXC-200-500 | 200 | 31.5 | 500 | 290×925 | 393 |
| KET-CXC-200-800 | 200 | 31.5 | 800 | 290×1225 | 498 |
| KET-CXC-200-1200 | 200 | 31.5 | 1200 | 290×1625 | 638 |
| KET-CXC-300-250 | 300 | 31.5 | 250 | 370×786 | 527 |
| KET-CXC-300-300 | 300 | 31.5 | 300 | 370×836 | 554 |
| KET-CXC-300-500 | 300 | 31.5 | 500 | 370×1036 | 662 |
| KET-CXC-300-700 | 300 | 31.5 | 700 | 370×1236 | 769 |
| KET-CXC-300-1100 | 300 | 31.5 | 1100 | 370×1636 | 983 |
| KET-CXC-300-1500 | 300 | 31.5 | 1500 | 370×2060 | 1217 |
| KET-CXC-400-300 | 400 | 31.5 | 300 | 400×812 | 652 |
| KET-CXC-400-500 | 400 | 31.5 | 500 | 400×1012 | 794 |
| KET-CXC-400-700 | 400 | 31.5 | 700 | 400×1212 | 936 |
| KET-CXC-400-1000 | 400 | 31.5 | 1000 | 400×1537 | 1173 |
| KET-CXC-400-1100 | 400 | 31.5 | 1100 | 400×637 | 1245 |
| KET-CXC-400-1500 | 400 | 31.5 | 1500 | 400×2096 | 1586 |
