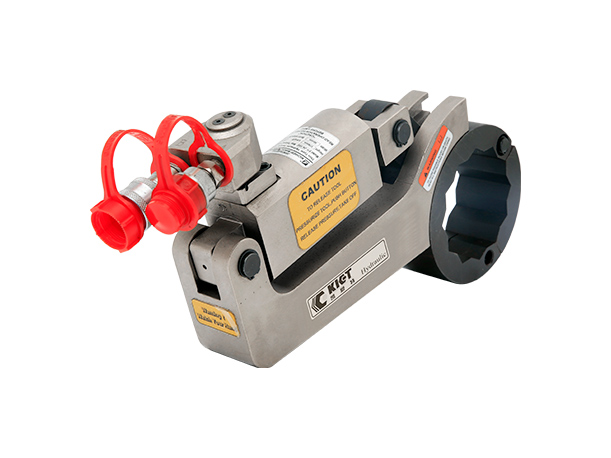

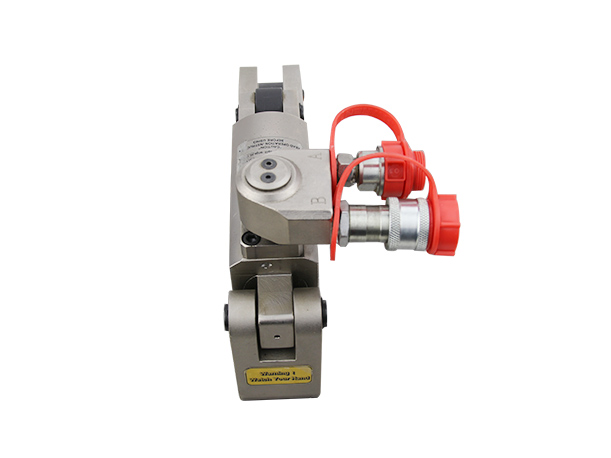

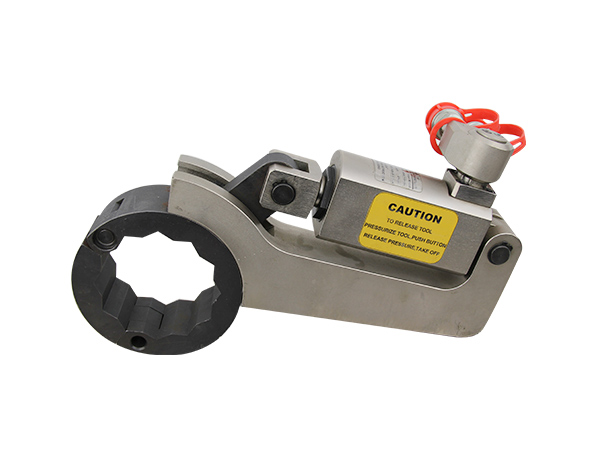

KET-KBS Split Type Hydraulic Torque Wrench

Feat: The unique “break” design can twist any size or any type of fastening nut.

Use: Tighten or remove the nuts quickly and accurately.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
Product Descriptions:

When the split type hydraulic torque wrench encounters a problem of an axis, a rodor a pipe through in the center of nut, it still can solve easily.Unique "split typedesign can reverse any size or any type of fastening nuts, provide unprecedentedspeed, accuracy and safety."Split type" design allows the tool to be set on various types of axes, rods and tubesin one minute. lt can tighten or remove the bolts easily for only a few seconds.

Product Features:
  • Unique double-sided swivel joint design, applicable tomore occasions.
  • Corrosion resistant nickel coating on all exposed parts.
  • Each wrench is tested and calibrated to ±3% accuracy.
  • Standard working pressure: 70MPa.
Specs
Model Max. Torque(Nm) Length(mm) Height(mm) Width(mm) Radial Clearance(mm) Axial Clearance(mm) Split Range(mm) Weight(kg)
KET-KBS-10 11390 271 178 50 127 99 86-117 2.1
KET-KBS-20 27256 357 232 50 187 127 117-152 4.8
KET-KBS-30 43392 406 256 50 224 171 152-210 7.2
