Hydraulic Torque Wrench

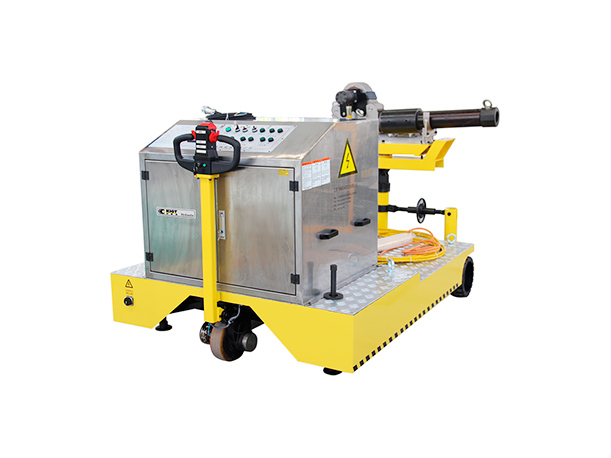

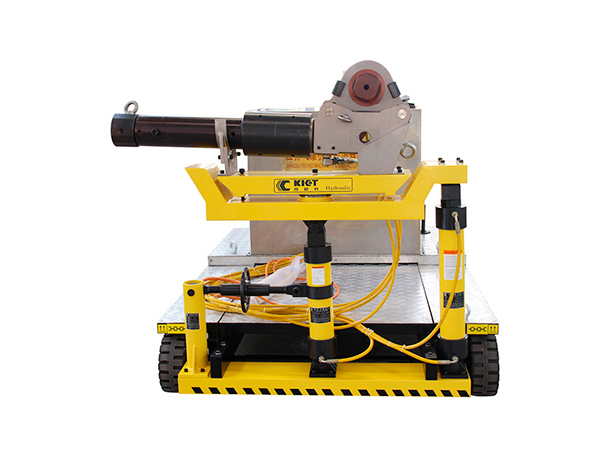

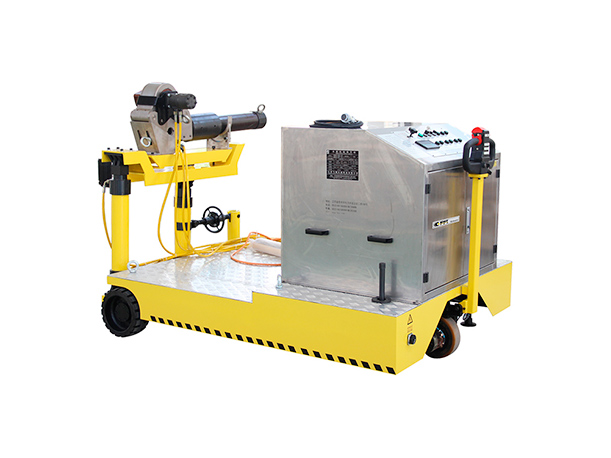

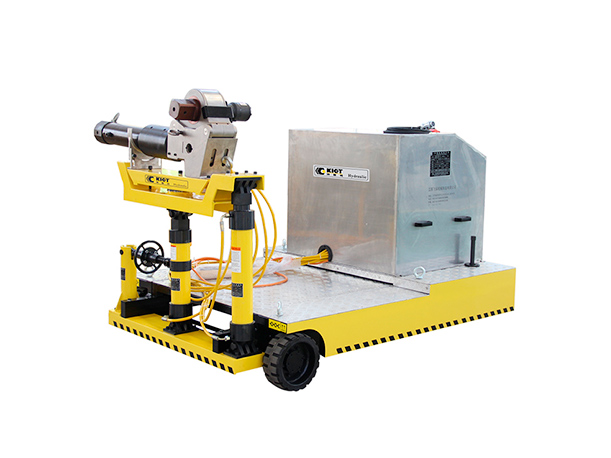

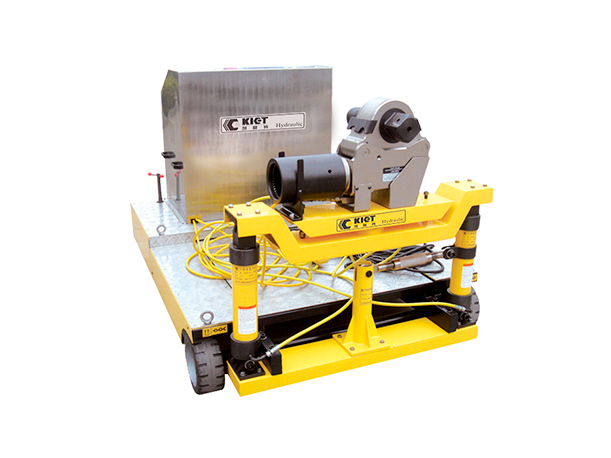

KET-QZD Automatic Vehicle Hydraulic Torque Wrench

Feat: Quick disassembly, lightweight and flexible, easy to use.

Use: It is specially designed for the disassembly and installation of rotary blade bolts of hydraulic turbines in hydropower plants.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
Product Descriptions:

The fully automatic vehicle hydraulic torque wrench is designed specially for theassembly and disassembly of turbine runner blade bolt in hydraulic power plant. ltreplaces the manual tap wrench, driving traction and other installation anddisassembly modes. Reduce the labor intensity and eliminate the hidden danger, toachieve the purpose of fast, light and flexible disassembly. Fully automatic vehiclehydraulic torgue wrench is a special hydraulic equipment for tightening andloosening bolts.lt has the characteristic of fully closed overall frame structuretorque accuracy +3%,360 degree swivel quick coupler, double acting, high speed.high degree of rotation angle and so on .

Specs
Model Motor Power(KW) Travel Speed(m/min) Battery Power(Ah、V) Displacement Stroke of Mobile Station(mm) Lifting Height of Mobile Support Platform(mm) Swing Angle of Mobile Support Platform(°)
KET-QZD-11000 0.75 0-80 120、24 0-500 0-700 ±15
Model Hydraulic Motor Torque (N.m) Hydraulic Wrench Torque (N.m) Motor Power Working Pressure(MPa) Dimensions (mm)
KET-QZD-11000 465 110000 380V/50Hz 3KW 1400rpm low pressure:20
high pressure:70
2170×1560×870
