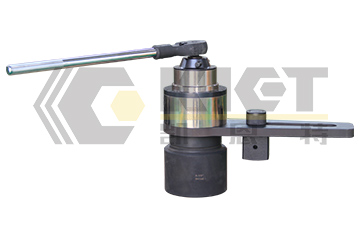

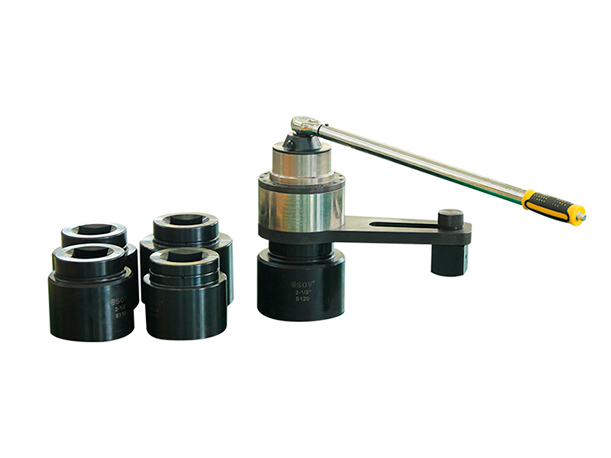

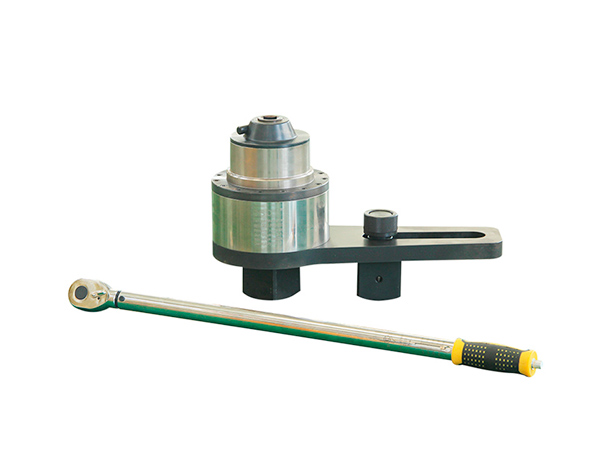

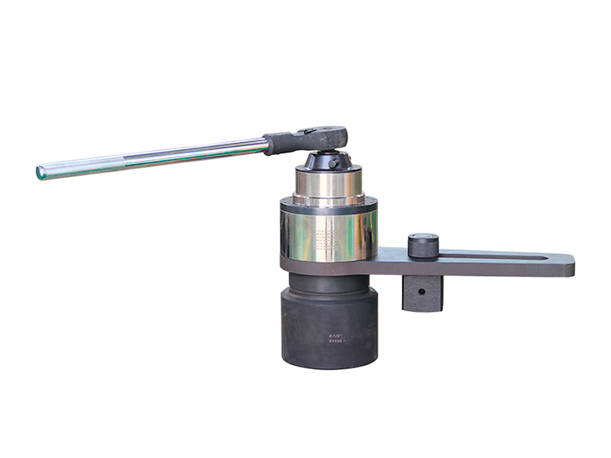

Torque multipliers are widely used for quick installation and disassembly of bolts, without power and gas source. It is very convenient to use on site. You can output a large torque accurately, with a small torque input. It is widely used in petrochemical industry, railway construction and bridge construction.

Features:

High gear ratio, just use a small torque wrench
Multipliers with a magnification ratio of more than 25:1 are equipped with anti-rebound safety devices, which are safe and convenient
A wide variety of reaction arms are available for a variety of occasions
Can be used with torque sensor, display, can display torque value
Precise planetary gear structure, strong and durable
Anti-reverse device, improve work efficiency and operate more safely
Use with manual torque wrench, torque accuracy: ±3%
Integrated 360° reaction arm for better field support

Specs

Model	Bolt Diameter	Nut Across Flat	Input Square	Output Square	Torque(Nm)	Torque Ratio	Transmission Ratio	Weight （kg）
KET-FDB-10	M20-30	S30-46	1/2＂	1＂	1000	1:4.5	1:5.5	2.1
KET-FDB-20	M22-35	S32-55	1/2＂	1＂	2000	1:12	1:16	3.15
KET-FDB-35	M30-45	S46-70	1/2＂	1＂	3500	1:15.4	1:20.25	4.9
KET-FDB-55	M42-60	S55-80	1/2＂	1 1/2＂	5500	1:18.8	1:25.4	8.1
KET-FDB-75	M52-72	S65-90	1/2＂	1 1/2＂	7500	1:21.5	1:29.33	10.6
KET-FDB-100	M52-72	S80-105	1/2＂	1 1/2＂	10000	1:27.8	1:37.71	14
KET-FDB-150	M60-85	S80-120	1/2＂	2 1/2＂	15000	1:50	1:70.19	24.1
KET-FDB-200	M72-100	S105-145	1/2＂	2 1/2＂	20000	1:72	1:101.62	27.8

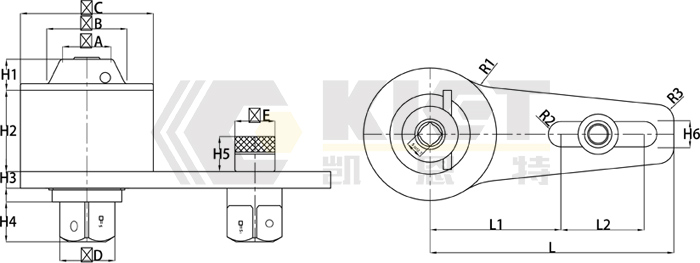

Model	ΦA	ΦB	ΦC	ΦD	ΦE	H	H1	H2	H3	H4	H5	H6	L	L1	L2	R1	R2	R3	R4	S	S1
KET-FDB-20	50	68	82	34	32	120	120	57.5	10.5	25	25	17.5	160	80	62	30	8	12	3	1″	1″
KET-FDB-35	53	77	98	34	34	128	128	63.5	12	25	25	22.5	180	90	68	30	9	12	3	1″	1″
KET-FDB-55	52	80	115	50	38	157	157	71	14	32	32	26	210	115	70	30	12	15	3	1.5″	1.5″
KET-FDB-75	64	92	127	50	49	168	168	80	16	32	32	30	240	120	90	30	13.5	15	3	1.5″	1.5″
KET-FDB-100	78	106	141	50	49	186	186	90	18	32	32	47	270	125	110	30	15	15	3	1.5″	1.5″
