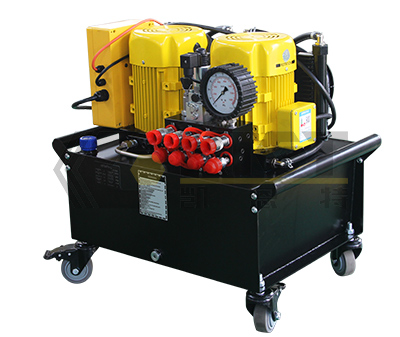

Large Flow Electric Hydraulic Pump for Hydraulic Torque Wrench
KET-SDW Large Flow Electric Hydraulic Pump for Hydraulic Torque Wrench

Feat: Dual motor design and greater driving power.

Use: Suitable for high load work with pre-tightening of equipment bolts synchronously.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
Features:
  • The pump station adopts a unique dual motor design with higher drive power Faster and more compact
  • Brushless high-power motor, maintenance-free, with longer service life
  • High-performance radiator. The fan starts automatically when the oil temperature reaches 35°C, ensuring long-term uninterrupted work.
  • It can perform four synchronous operations, suitable for high-load work with equipment bolts synchronously preloaded.
  • Roller frame armrest for easy mobility in the field.

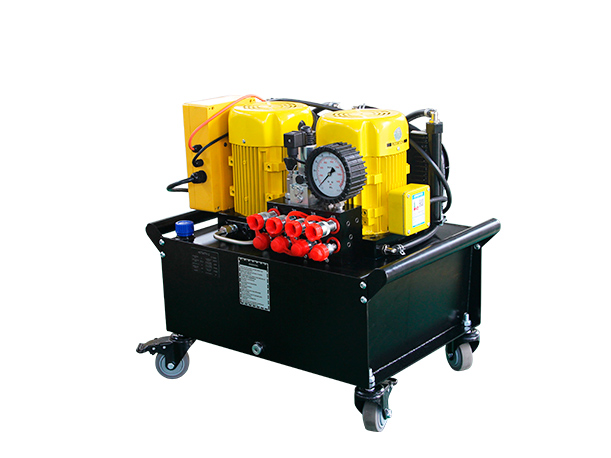

Large Flow Electric Hydraulic Pump for Hydraulic Torque Wrench
Specs
Model Oil Tank Capacity (L) Motor Power (KW) Power Supply Flow (L/min) Workiing Pressure (MPa) Dimensions (mm) Standard Length of Remote Line (m) Weight (kg) Oil Distributir (PC)
KET-SDW-2 20 1.1×2 220V/50Hz single phase 16L(0-6.5MPa)  3.6L(6.5-32MPa) 1.7L(32-70MPa) 70 400×350×400 6 45 2
KET-SDY-2 20 1.1×2 2220V/50Hz single phase 16L(0-6.5MPa)  3.6L(6.5-32MPa) 1.7L(32-70MPa) 70 400×350×400 6 45 2
KET-SDW-4 20 1.1×2 220V/50Hz single phase 16L(0-6.5MPa)  3.6L(6.5-32MPa) 1.7L(32-70MPa) 70 400×350×400 6 45 4
KET-SDY-4 20 1.1×2 220V/50Hz single phase 16L(0-6.5MPa)  3.6L(6.5-32MPa) 1.7L(32-70MPa) 70 400×350×400 6 45 4
