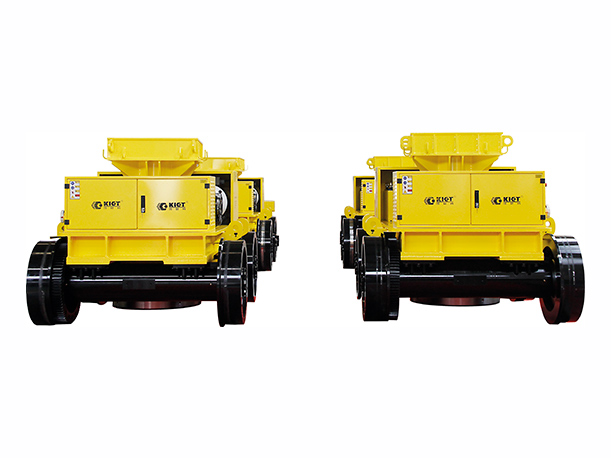

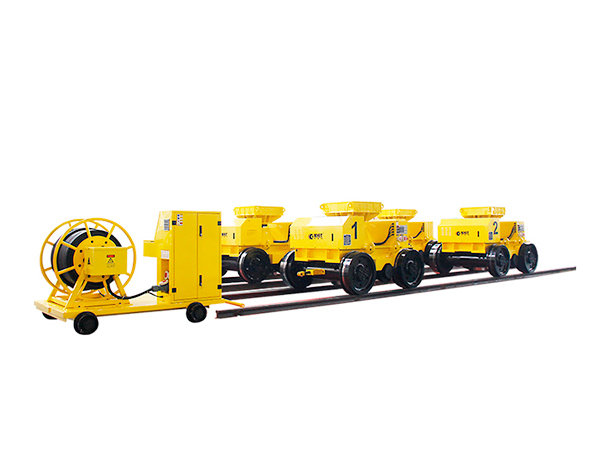

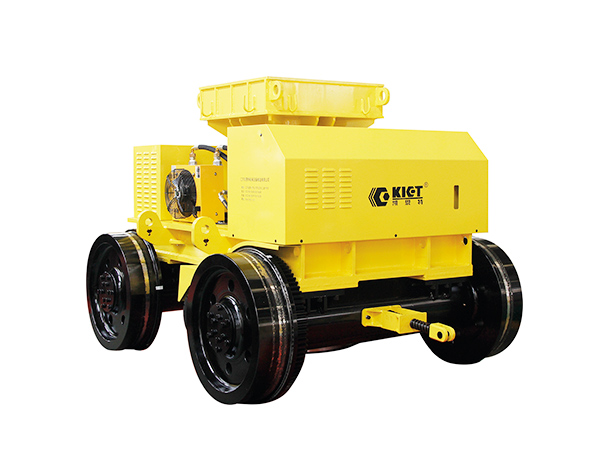

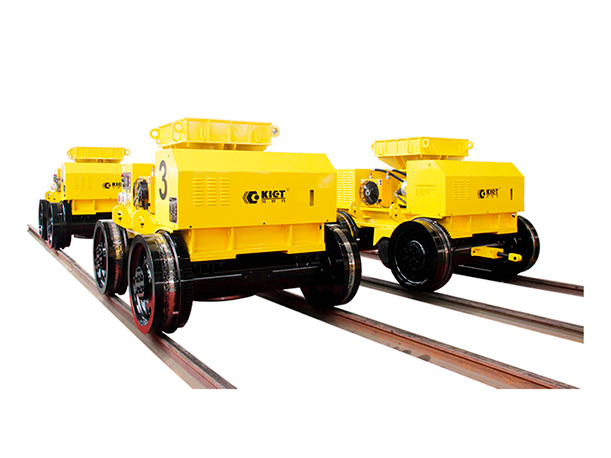

KET-ZNYC Intelligent Heavy-duty Transfer Trolley

Feat: Modern communication bus networking mode, electromechanical and hydraulic integrated design.

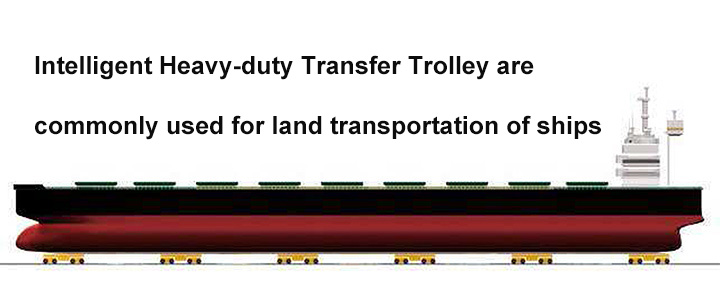

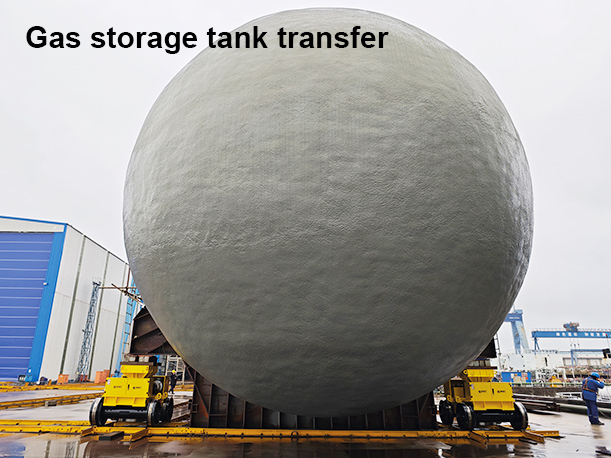

Use: Transportation of large objects, such as hull launching and transfer.

Details

The carrying capacity of each equipment can be customized according to the actual load, and the modular design can meet the requirement of up to 99 devices for linkage synchronous control hydraulic. motor drive, with large driving capacity, small appearance and good waterproof performance.

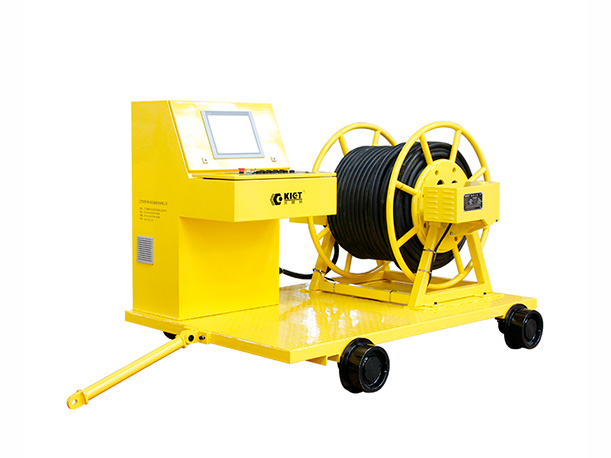

High positioning accuracy, up to 3mm synchronous positioning accuracy, all parameters can be set in the general control room according to the needs of the working conditions.
Modern communication bus networking, electromechanical and hydraulic integration design, each bearing equipment is a complete hydraulic, mechanical and electrical control unit adopts heavy-duty roller support mode, small friction coefficient, high operation stability.
Real-time monitoring of displacement sensors and pressure sensors to ensure on-site construction.
The system has its own displacement out-of-tolerance and pressure out-of-tolerance alarm function to protect the safety of the site.

Specs

Load(t)	60~300
Travel(mm)	100~250
Work pressure(MPa)	31.5
Suitable environment temperature(℃)	-20~40
Driving mode	Hydraulic motor
Suitable track	QU70/QU100
Whether a single trolley has independent walking	Yes
The trolley has a brake function	Yes
Number of wheels	4
The trolley has an autonomous support function	Yes, self-supporting structure
The trolley has a rotation function	Yes, manual assisted rotation is required
