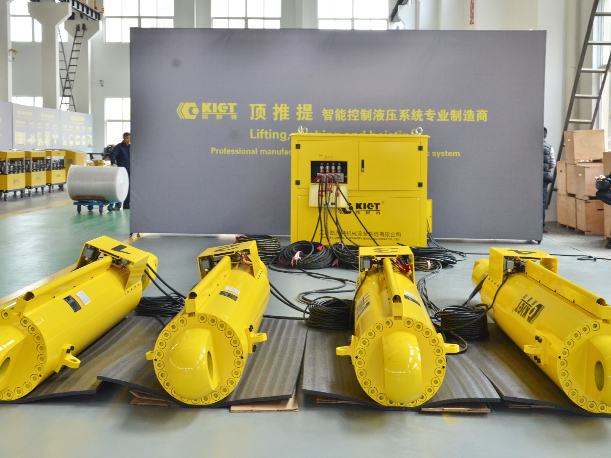

Feat: Built-in displacement sensor in the cylinder, high-precision horizontal positioning adjustment.
Use: Used for automatic leveling when the shield machine is hoisted.
● The cylinder has a built-in displacement sensor to achieve high-precision horizontal positioning adjustment
● The system can be optionally equipped with a load cell integrated inside the cylinder to achieve high-precision weighing
● High-precision load weighing anad center of gravity display
● Manual/automatic leveling function,safe, simple, convenient and high-precision control (±1.0mm)
● Reduce the risk of damage to the sling due to vibration when the crane starts and stops suddenly
● Dramatically increase the speed of operation and the safety of the operator
● Integrated development of control systems
● Manual/automatic free switching, convenient for on-site operation, automatic displacement, pressure double closed-loop control
● Built-in alarm function: position over-tolerance alarm, pressure over-limit alarm, oil level alarm, oil temperature alarm, etc
● The system is equipped with a human-machine interface, and can be equipped with wireless remote control and local operation as an option
● Real-time storage of construction data to achieve data traceability
● The position of the center of gravity of the load is automatically displayed on the screen
| Model No. | System carrying capacity (t) |
Level the point | Maximum leveling stroke (mm) |
Single-point cylinder pull (t) |
System traffic (L/min) |
Maximum operating pressure (MPa) |
| KET-PHD-100 | 400 | 4 | 1500 | 100 | 6.5×4 | 31.5 |
| KET-PHD-150 | 600 | 4 | 1500 | 150 | 6.5×4 | 31.5 |
| KET-PHD-200 | 800 | 4 | 1500 | 200 | 8.2×4 | 31.5 |
| KET-PHD-300 | 1200 | 4 | 1500 | 300 | 8.2×4 | 31.5 |
