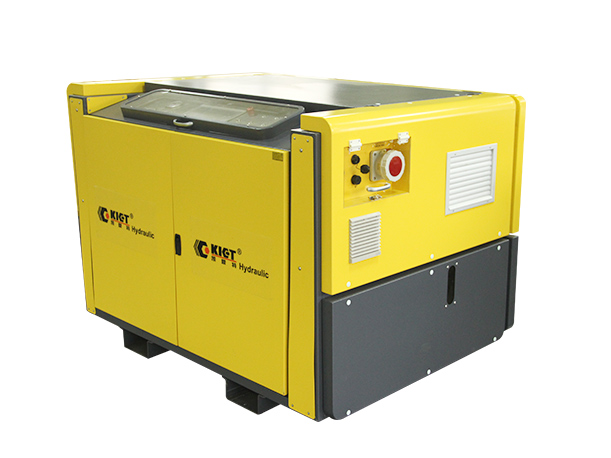

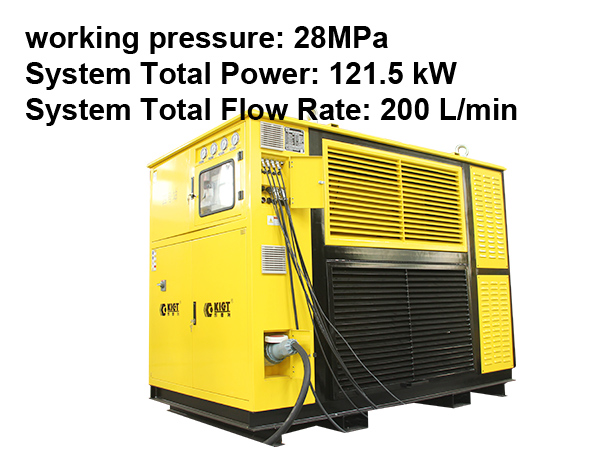

Hydraulic System for Strand Jack Exclusive_Hydraulic Hoisting System_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Details

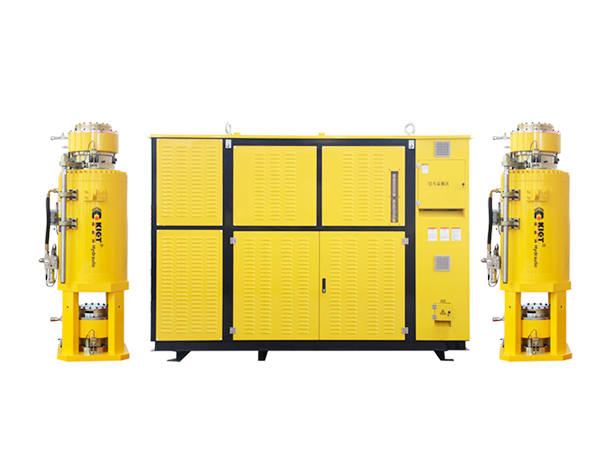

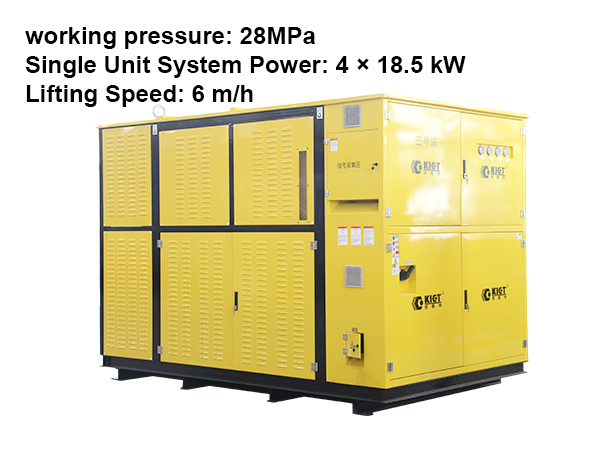

Increase the function of frequency control based on conventional hydraulic proportion power system, improve the utilization of energy. Reduces overheat and increases reliability of the system. It is the best choice for the synchronous hydraulic lifting systems and synchronous traction equipment.

Features of Hydraulic System for Strand Jack Exclusive：

Expanding the combination of hoisting equipment, hoisting weight, span and volume are not limitedUse flexible steel strands for load-bearing, as long as there are reasonable load-bearing hoisting points, the hoistingheight is not limited
The anchor has selflocking property of reverse movement, which makes the hoisting process very safe, and thecomponents can be reliably locked for a long time at any position in the hoisting processThe equipment is small in size, light in weight and large in carying capacity, and is particularly suitable for lifting largetonnage components in narrow spaces or indoors
The equipment has high degree of automation, convenient and flexible operation, high reliability and wide application

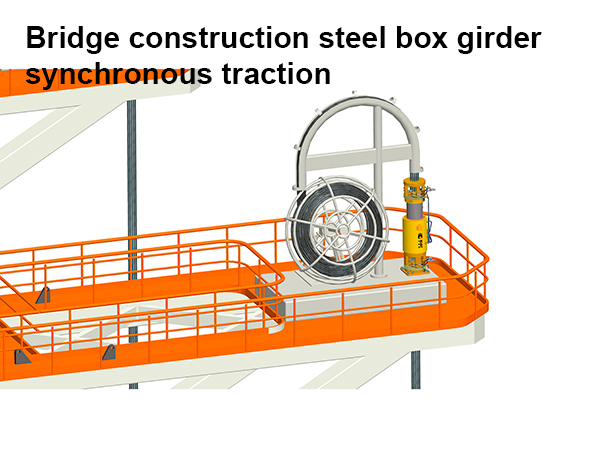

Diagram of Strand Jack Synchronous Lifting

Specs

Model No.	Cylinder Height （mm)	Capacity （T）	Stroke （mm）	Strand Steel Dia. （mm）	Strand Steel Nos	Weight （kg）
KET-TSD-15	1980	15	500	18	1	160
KET-TSD-60	2000	60	500	18	4	610
KET-TSD-100	2050	100	500	18	7	910
KET-TSD-200	2100	185	500	18	12	1600
KET-TSD-300	2180	294	500	18	19	2300
KET-TSD-400	2280	400	500	18	27	3300
KET-TSD-600	2300	588	500	18	38	4500
KET-TSD-700	2350	697	500	18	45	5600
KET-TSD-800	2400	800	500	18	54	6660
KET-TSD-1000	2500	1000	500	18	66	8000
