Feat: The spatial position of the component (horizontal, vertical, height and horizontal) can be precisely adjusted.

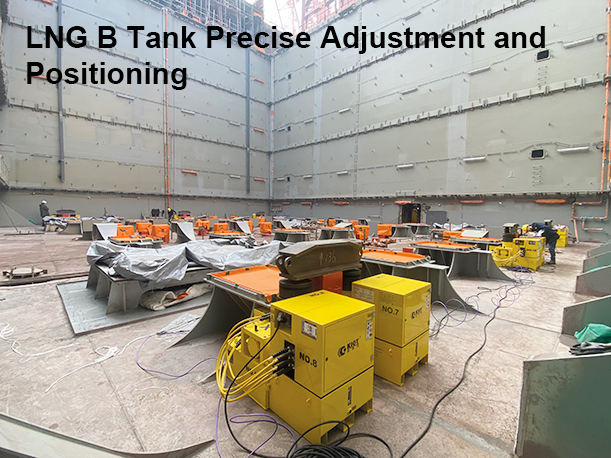

Use: Precise positioning of LNG B modules.

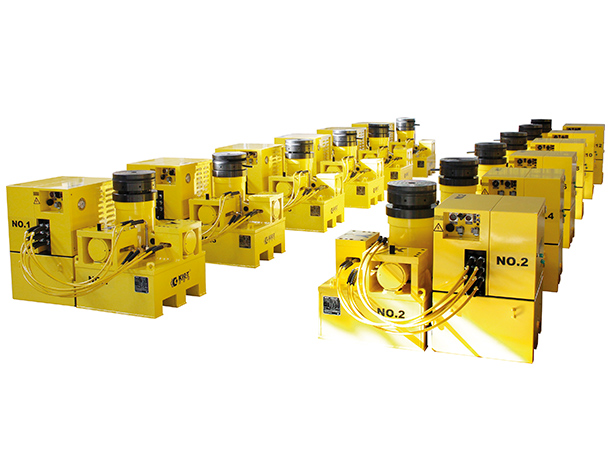

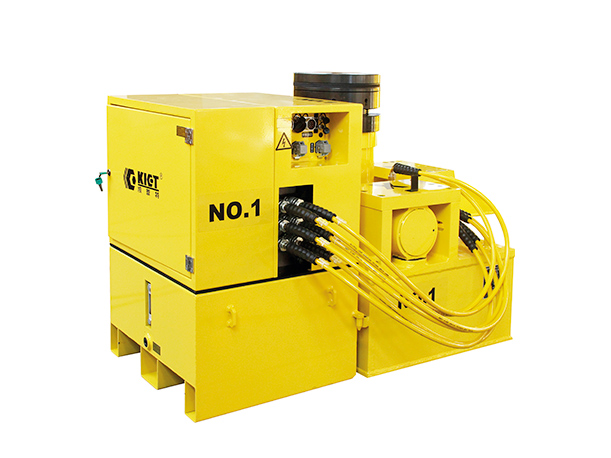

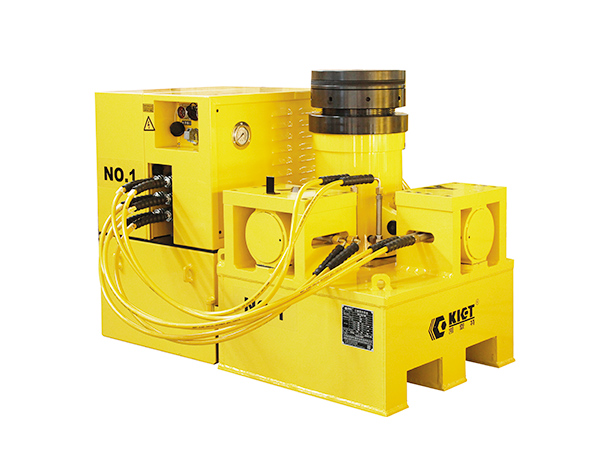

Semi-automatic 3D Adjustment Hydraulic Equipment is used to meet the relevant requirements for the displacement of large-scale structural components and 3D adjustment to achieve precision positioning.It’s split structure, including 2 main components (3D hydraulic cylinders and hydraulic power unit),can be assembled or separated according to the on-site application environment and the spatial dimensions.
● Precision adjustment of the spatial position (horizon, longitude, height level)
● Long time jacking by main cylinder nut locking
● Each X, Y, Z cylinders can be operated individually, more can be connected upon request
● Jog operation, stop when release to the X Y Z cylinders
● Capable of working in coastal areas and under low-temperature conditions
● Small size, compact structure, 2-3 people can push and transport by trolley
● Can be used outdoors, IP56, Insulation F,3C

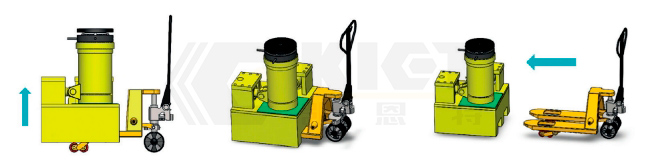

Easy handling with forklift
● Small size, disassemble
● Split type, easy for storage and transportation
● Working Temperature: -20℃~ 50℃
● Max Monthly Humidity: ≤ 95%(+25℃)
● Resistance to salt spray
● Power: AC 380v±10％,1.1kW/PC,50Hz±1Hz L-HM32 hydraulic oil
| Model No. | Capacity (t) | Cylinder Stroke(mm) | Collapsed Height (mm) | ||
| Z | X | Y | |||
| KET-TZJ-M100 | 100 | 200 | ±40 | ±40 | 1000 |
| KET-TZJ-M200 | 180 | 200 | ±40 | ±40 | 1000 |
