Hydraulic Pushing System

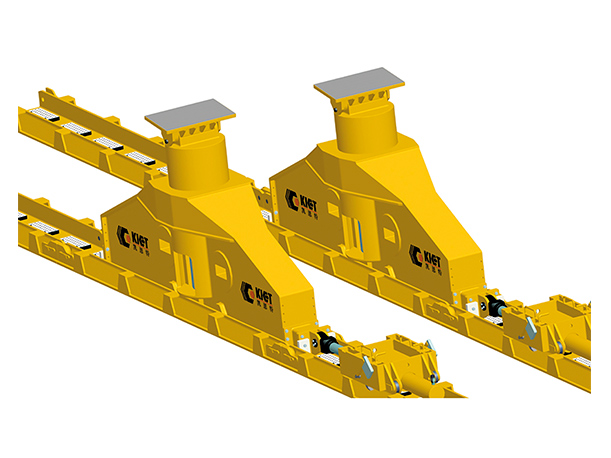

Heavy Duty Long Distance Pushing Hydraulic Equipment
Heavy Duty Long Distance Pushing Hydraulic Equipment
Heavy Duty Long Distance Pushing Hydraulic Equipment
KET-VSS Heavy Duty Long Distance Pushing Hydraulic Equipment

Feat: Multiple linkage synchronous control, electromechanical and hydraulic integrated design.

Use: Used for the movement of heavy objects.

  • Detail
  • Tech
  • Case
  • Vid
  • Also
Details
  • Each load-bearing device has a maximum lifting capacity of 1,000 tons, and the system can be connected to a maximum of 100 devices for simultaneous synchronization control
  • With synchronous positioning accuracy up to 1mm, all parameters can be set in the master control room according to needs of the working conditions.
  • Modern communication bus networking mode, electromechanical fluid integration design; each load bearing equipment is a complete hydraulic, mechanical and electrical control unit.
  • Adopt heavy-duty sliding method to ensure that there is no possibility of instability or falling in the vertical direction, which is safe and reliable.
  • Real-time monitoring by displacement sensors and pressure sensors to ensure on-site data construction.
  • All pipelines are quickly plugged and unplugged; and on-site operation is simple and convenient.
Features:
  • Single device capacity: 100-1000T
  • Synchronous sliding speed: 0-1m/min
  • Synchronous positioning accuracy: ±1mm
  • Heavy load lifting stroke: 200mm
  • Single pushing distance: 200-1000mm
  • Online connection mode: bus communication
Specs
Model Sliding Beam Push-Pull Device
CapacityT Min. Heightmm Strokemm Weightkg CapacityT Strokemm
KET-VSS-100 100 645 150 585 100/50 600
KET-VSS-150 150 905 250 1000 150/75 600
KET-VSS-300 300 1355 400 3211 300/150 1250
KET-VSS-500 500 1485 600 4761 500/250 1250
KET-VSS-800 800 1542 600 8000 800/400 1250
KET-VSS-1000 1000 1462 600 11600 1000/500 1250
Cases
Hydraulic Skidding System (Light-Duty Skidding System) for Transformer Installation and Positioning
Hydraulic Skidding System (Light-Duty Skidding System) for Transformer Installation and Positioning
Hydraulic Turntable for Rotating Large Motors during Installation
Hydraulic Turntable for Rotating Large Motors during Installation

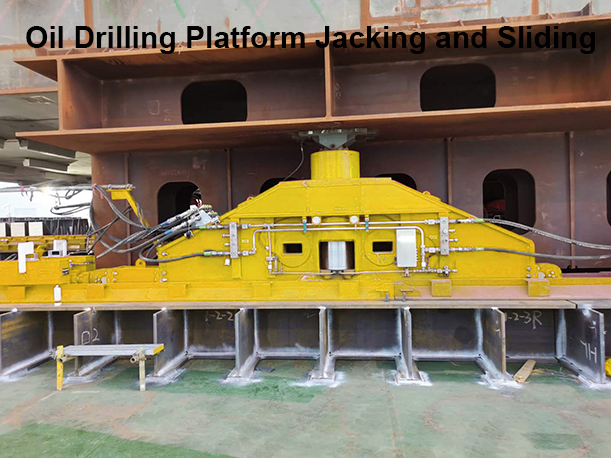

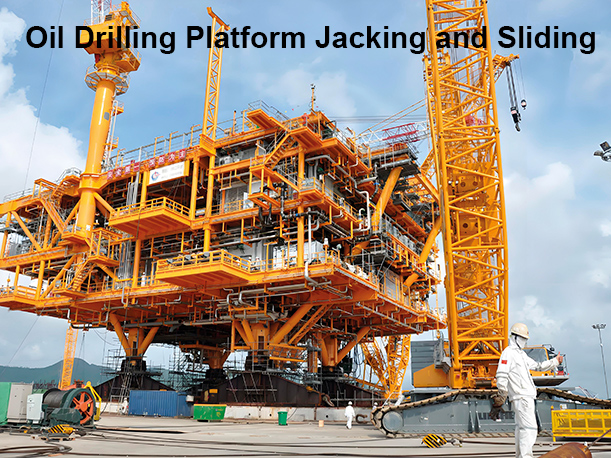

Heavy-load Long-distance Lifting & Skidding Hydraulic System for Offshore Oil Drilling Platform Relocation
Heavy-load Long-distance Lifting & Skidding Hydraulic System for Offshore Oil Drilling Platform Relocation
