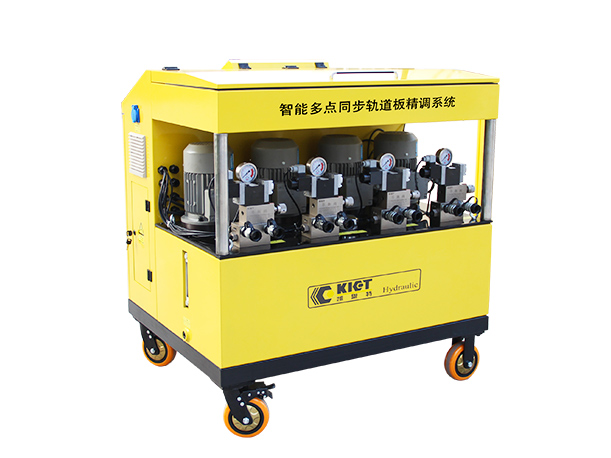

Synchronous Track Plate Adjustment Hydraulic Pump System_Hydraulic Lifting System_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Details

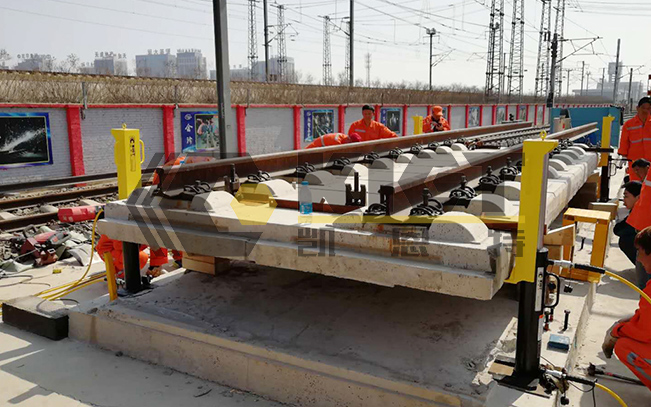

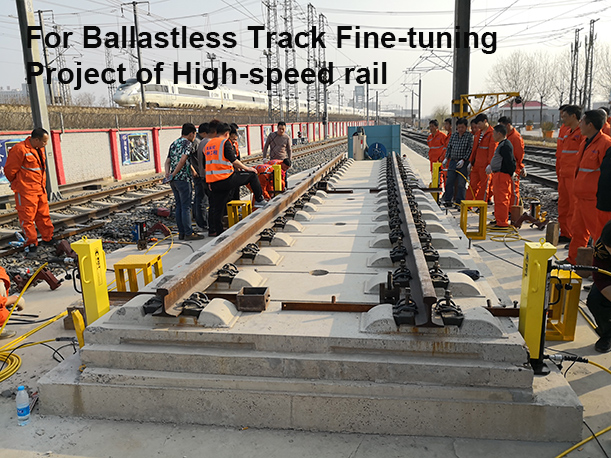

The Synchronous Track Plate Adjustment Hydraulic Pump Systemis a cutting-edge solution designed for precision adjustment of ballastless track plates in confined rail environments. Leveraging advanced hydraulic drive, pressure control, and closed-loop displacement automation, this system ensures synchronous and accurate elevation of track plates. It is engineered to precisely adjust the height and alignment of track plate bearing platforms, enabling exact positioning of bolt holes for seamless track assembly.

Features of Synchronous Track Plate Adjustment Hydraulic Pump System：

Precision Synchronization: Utilizes hydraulic drive and displacement closed-loop control to achieve synchronized lifting of multiple track plates with pinpoint accuracy.
Compact Design: Optimized for narrow rail spaces, ensuring efficient operation in constrained environments.
Variable Frequency Control: Employs a variable frequency drive (VFD) to regulate oil pump motor speed, allowing continuous and precise adjustment of hydraulic flow.
Automated Adjustment: Integrates advanced electronic control and detection systems to precisely manage jack lifting speed and stroke, ensuring flawless track plate alignment.
High Reliability: Robust construction and intelligent control systems ensure consistent performance under demanding conditions.

Specs

Model	Structure	Synchronization Accuracy (mm)	Power Supply Voltage (AC/V)	Working Pressure (MPa)	Flow Rate (L/min)
KET-D8TB-4D	Double-acting, Multi-point Synchronous	≤0.5	380V/50HZ	31.5	1L/min*4 units
