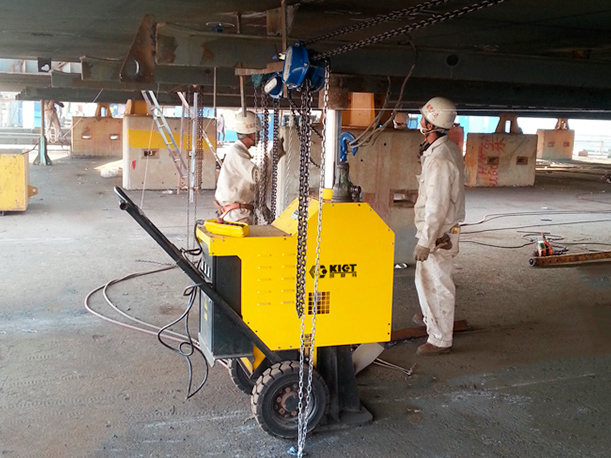

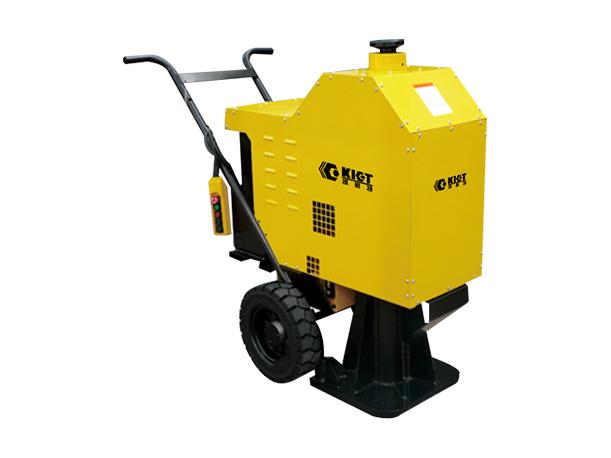

The horizontal hydraulic adjustment machine is specially designed for height adjustment in the hull segmentation closing condition, which allows the hull segment to be accurately positioned in the height direction. By using high-quality 70MPa ultra-high pressure hydraulic products, the equipment is smart design, light in weight and economic. The large diameter travel wheels allow operator to easily push the equipment away and positioning. There are lifting points and shovel holes for easy gantry crane and forklift transportation. Large stroke design, the maximum stroke of 600mm, which effectively solves the adjustment condition of height direction. The top is equipped with a 5° anti-eccentric saddle to effectively adapt to the unevenness of the bottom of the segment.

• Operation Method: Wire control handle, wireless handle;
• Mode of transportation: Manual, lifting, shoveling;
• It is specially designed for the precision adjustment and positioning of small ship segments;
• Two-speed electric pump, high efficiency when no-load adjustment, high precision when heavy load adjustment;
• Optimized structural design, the equipment has a rated load capacity and a very large load capacity-to-weight ratio;
• The large wheel diameter design make it easy to move forward and rotate by manpower, which is convenient for the equipment to in an application under each and every one of ship’s segment
