Feat: The number of lifting units is determined according to the lifting capacity required by the platform and the overall design requirements
Use: Synchronous lifting of wind power installation vessels

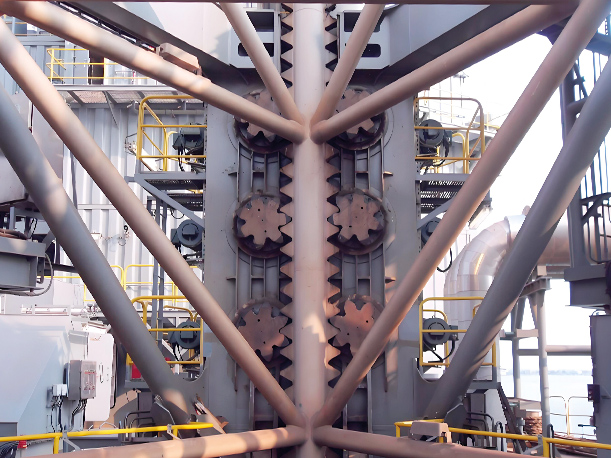

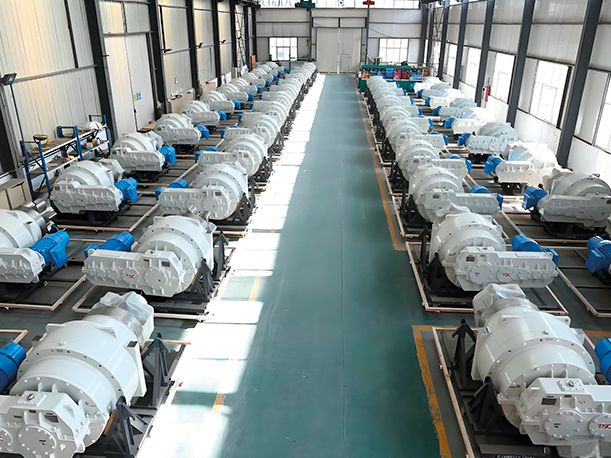

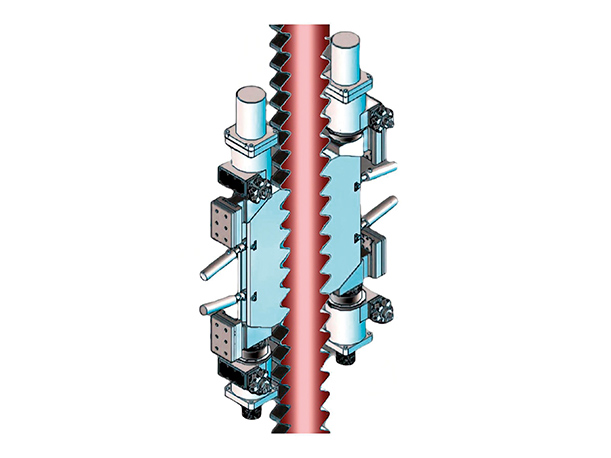

The system is usually composed of multiple lifting units and an electrical control system. The number of lifting units is determined according to the required lifting capacity of the platform and the overall design requirements.The lifting unit includes a planetary gearbox, a parallel gearbox, a climbing gear, a motor, and a brake. The system can be divided into the motor-driven gear and rack type and the hydraulic-driven gear and rack type.
| Model No. | Rated Lifting Capacity (t) | Pre-ballast Capacity (t) | Rated Static Support Capacity(t) | Max Static Support Capacity(t) | Lifting Speed(m/min) | Drive |
| KET-JX-45 | 45 | 54 | 78 | 100 | 0.4~1.2 | Electric / Hydraulic |
| KET-JX-100 | 100 | 135 | 175 | 230 | 0.4~1.2 | |
| KET-JX-160 | 160 | 195 | 242 | 345 | 0.46 | |
| KET-JX-200 | 200 | 258 | 318 | 454 | 0.46 | |
| KET-JX-280 | 280 | 396 | 498 | 672 | 0.45 | |
| KET-JX-330 | 330 | 455 | 587 | 792 | 0.45 | |
| KET-JX-460 | 460 | 598 | 736 | 980 | 0.45 |
