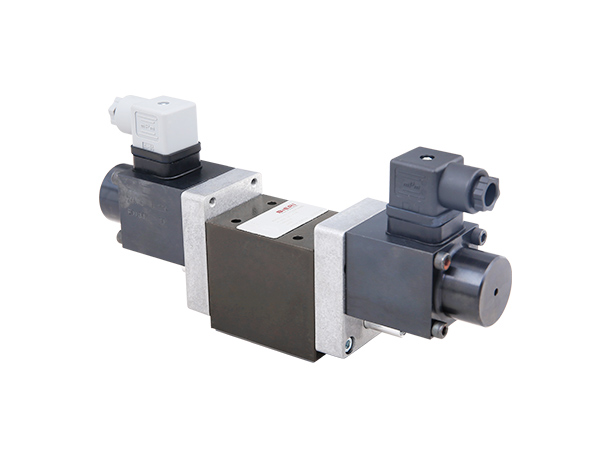

KET-VDR Soleniod Valve

特性：It is conventionally installed on an electro-hydraulic pump station or can also be installed on remote oil circuit control.

用途：Installed in an electro-hydraulic pump station for controlling the lifting and stop operation of single-acting and double-acting hydraulic jacks.

详细说明
技术参数
相关产品

详细说明

Features:

Solenoid valve is matched with electric hydraulic pump station to control single-acting, double acting cylinder lifting and lowering;
There are a variety of central functions for hydraulic control functions;
Achieving the hydraulic circuit in the pressure "lock" function with the superposition of hydraulic control valve;
Conventional installation in the electric hydraulic pump station, can also be installed on the remote oil control;

技术参数

Model	Cylinder type	Valve type	Middle position function	Control mode	Commutating voltage	Oil-way diameter	Max. Working Pressure
Model	Cylinder type	Valve type	Middle position function	Control mode	v	mm	MPa
KET-VDR-3406	double acting	Three position four way	O,H,Y	Solenoid valve	220/24	6	70
KET-VDR-3306	single acting	Three position three way	O,H,Y	Solenoid valve	220/24	6	70
KET-VDR-2406	double acting	Two position four way	–	Solenoid valve	220/24	6	70
KET-VDR-2306	single acting	Two position three way	–	Solenoid valve	220/24	6	70
KET-VDR-3405	double acting	Three position four way	O,H,Y	Solenoid valve	220/24	5	70
KET-VDR-3305	single acting	Three position three way	O,H,Y	Solenoid valve	220/24	5	70
KET-VDR-2405	double acting	Two position four way	–	Solenoid valve	220/24	5	70
KET-VDR-2305	single acting	Two position three way	–	Electromagnetic directional	220/24	5	70
